Flow’s First Bite: Ibis 741 super-wide carbon wheels


The not-so-minor details

Product

Ibis 741 wheelset

Contact

Meeco Sales
www.meecosales.com.au

Price

AUD1,699.00

Weight

1,660gm

Positives

Very sound theory supporting the concept of a wider rim.

Negatives

We don't want people to think we're riding a fat-bike.

Holy obesity epidemic, what have we got here?! Mountain bike rims have been trending wider and wider in recent years, but the new 650B Ibis 741 (and their 29er version, the 941) take things to a new level of phatness. Ibis aren’t known for their wheels, but we are super excited about testing these.

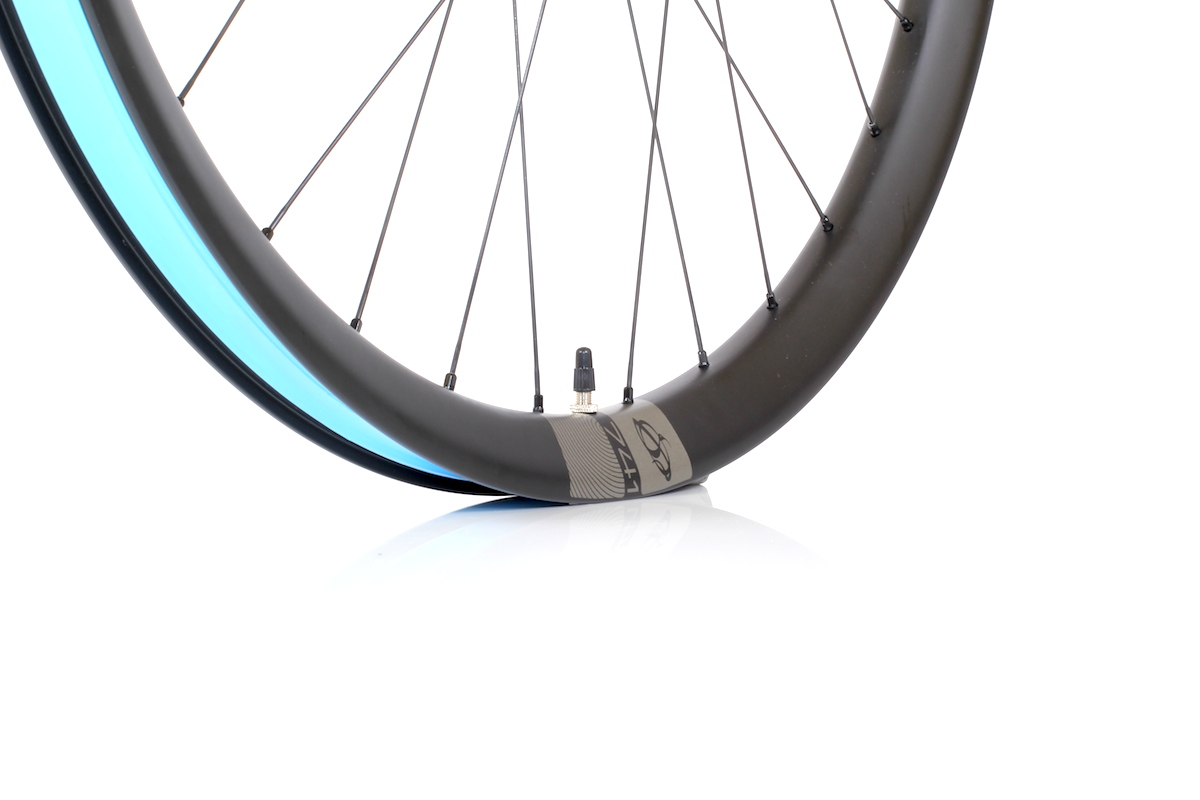

Ibis 741 wheels-2
Wide, deep and with under-the-radar graphics.

The width of these rims is not a gimmick or simple point of difference – there’s a perfectly sound basis for making mountain bike rims far wider than they have traditionally been. Ibis does a good job of explaining the theory in the video below, but in a nutshell, a wider rim should allow you to run a tyre at lower pressure, with greater stability and less tyre roll and, hence, less chance of burping air from a tubeless setup).

Of course, lower pressure equate to more grip and reduced rolling resistance on rough terrain, but dropping the pressures too far has traditionally meant a squirmy ride and a serious risk of a flat tyre or damaged rim – Ibis say their mega wide rims go a long way towards alleviating both of these problems.

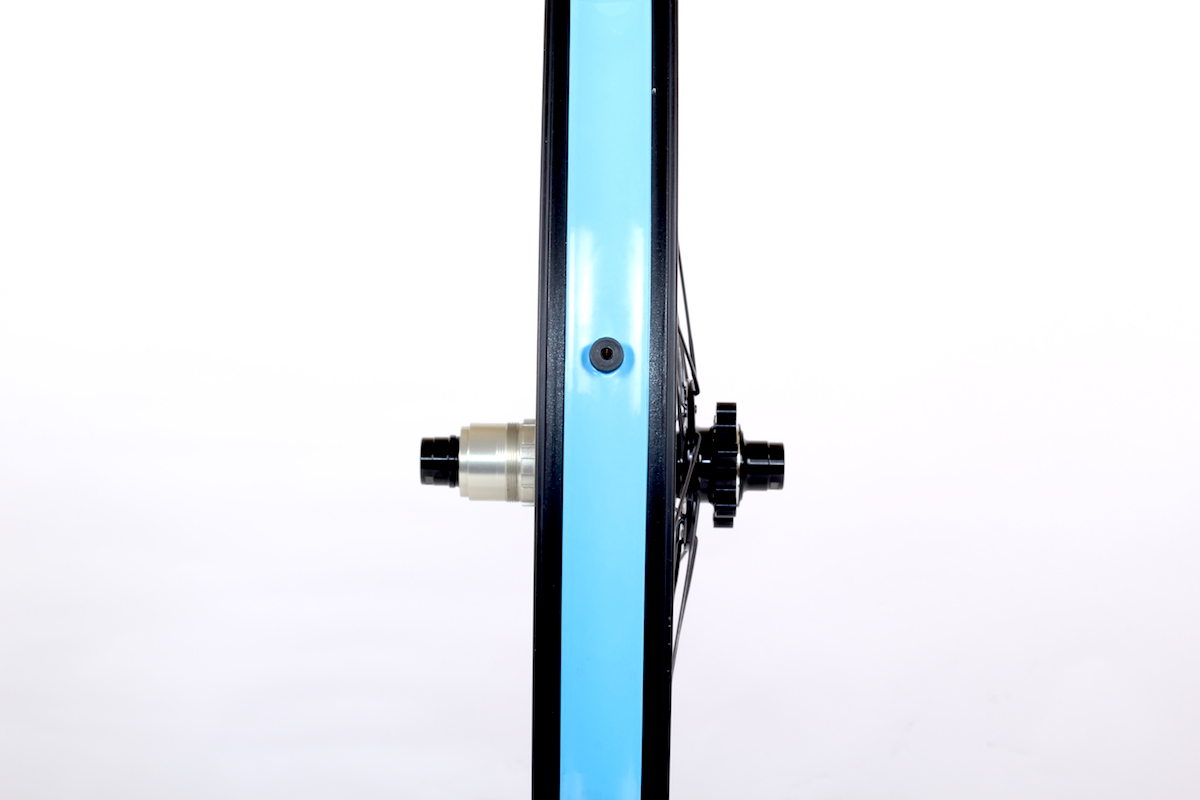

Ibis 741 wheels-7
Very wide. Ibis includes a set of tubeless valves. Because the rim is so huge, the valves are a little longer than standard – worth noting if you’re packing a spare tube on a ride!

So just how wide are they? The 741s have an external with of 41mm and 35mm internal – that’s between 10-15mm wider than your standard cross-country or trail rim in both internal and external measurements. And believe it or not, the weight of these wheels actually puts them head-to-head with some seriously well regarded XC and trail wheelsets – the pair come in at just 1660g including tubeless valves.

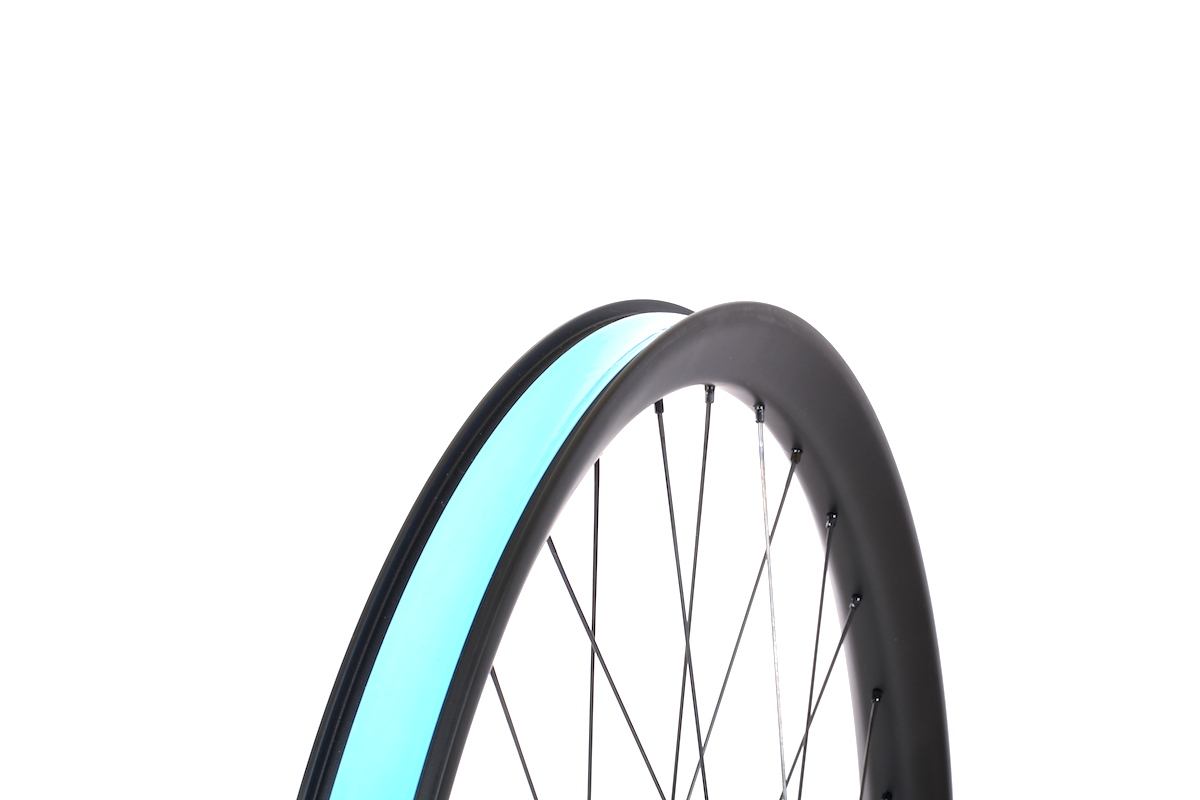

Ibis 741 wheels-4
If you look closely, you can see that there’s no bead hook to secure the tyre. We were unsure of the concept when we first rode hookless rims a year ago, but we’ve since clocked up hundreds of kilometres on them without a single issue.

Other noteworthy elements? The rims use ‘hookless’ bead construction (similar to the Specialized Control wheels we tested last year) which gives the rim far greater impact strength and the tyre more volume. They’re also spoked in a very conventional manner, with 32 spokes front and rear in a two-cross pattern which will appeal to the mechanics out there.

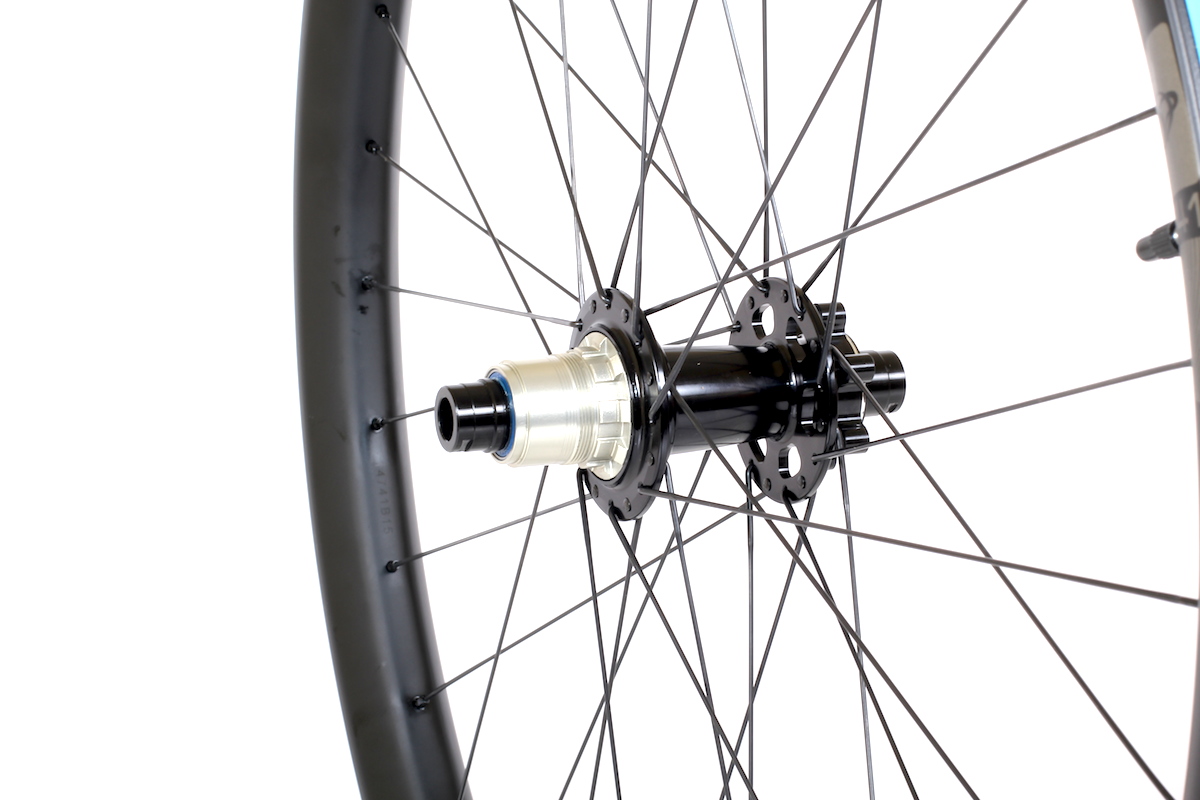

Ibis 741 wheels-6
Available with Shimano or SRAM XD driver bodies. The conventional spokes and external nipples should make any maintenance much easier than some.

We’ll be fitting these wheels to a variety of bikes over the coming weeks and months. With the swathe of carbon wheels we’ve been riding lately (ENVE, Specialized and Bontrager amongst them) it will be very interesting to see how these unique offerings compare.
