The Optic is Norco’s short-travel trail bike, which slots into the Canadian brand’s lineup between the Revolver FS (XC race) and the Sight (long-travel trail). We got our first taste of the Optic back in 2016, where we praised it for its very non-29er-like handling and playful attitude. That original Optic proved to be a popular little ripper for Norco, and as such, has remained relatively unchanged for the past three years. That all changes for 2020 though, with a complete overhaul to the Optic platform that sees substantial changes to suspension, geometry, frame design and its overall attitude.
Watch our video on the 2020 Norco Optic here!
The 2020 Norco Optic – What’s New?
Basically everything! This bike has been completely reimagined from its knobbly tyres-up, and aside from sharing the same name and a very basic silhouette, it doesn’t take long to realise this new Optic has very different intentions and capabilities to the old one.
So why the change of direction? It’s all because Norco released a new Revolver FS platform earlier this year – a lightweight carbon full suspension bike that is available in both XC (100/100mm) and Trail (120/120mm) versions. With the Revolver FS available with up to 120mm of travel, that saw it stepping on the toes of the previous Optic, which had 120/110mm of travel.
That really left new Optic nowhere to go but up, and so the new bike now features 125mm of rear travel with a 140mm travel fork. It’s still rolling on 29in wheels (and as far we know right now, 29in wheels only), and it’s still billed as a trail bike. Take one glance at the Optic’s piggyback shock, Pike fork, 65° head angle and Magic Mary front tyre though, and it’s apparent that this is one trail bike designed to rip very, very hard and fast.
Updated Suspension
The new Optic is still built around a four-bar Horst link suspension design, but rear travel has been bumped up from 110mm to 125mm. The kinematics have also been updated. Anti-squat has been increased around the sag point for more efficient pedalling manners, though it drops off faster than the old bike in order to reduce pedal kick-back deeper into the travel.
The travel has also been built around a significantly higher leverage ratio to begin with (3.0 vs 2.4), and a greater degree of progressitivity throughout the full spring curve. In theory, this will improve the Optic’s small-bump compliance, while giving it more support deeper into the travel for Bryn Atkinson-inspired shenanigans.
To facilitate those big-hits, you’ll find a custom RockShox Super Deluxe Ultimate DH shock (could SRAM please squeeze in a few more superlatives into the name for a shock?). This dinky shock features a piggyback reservoir, as well as a custom damper tune and stroke. The high-speed compression damping in particular is more aggressive than stock, which again is to help the Optic better handle those ‘OHHH SHIT!” moments.

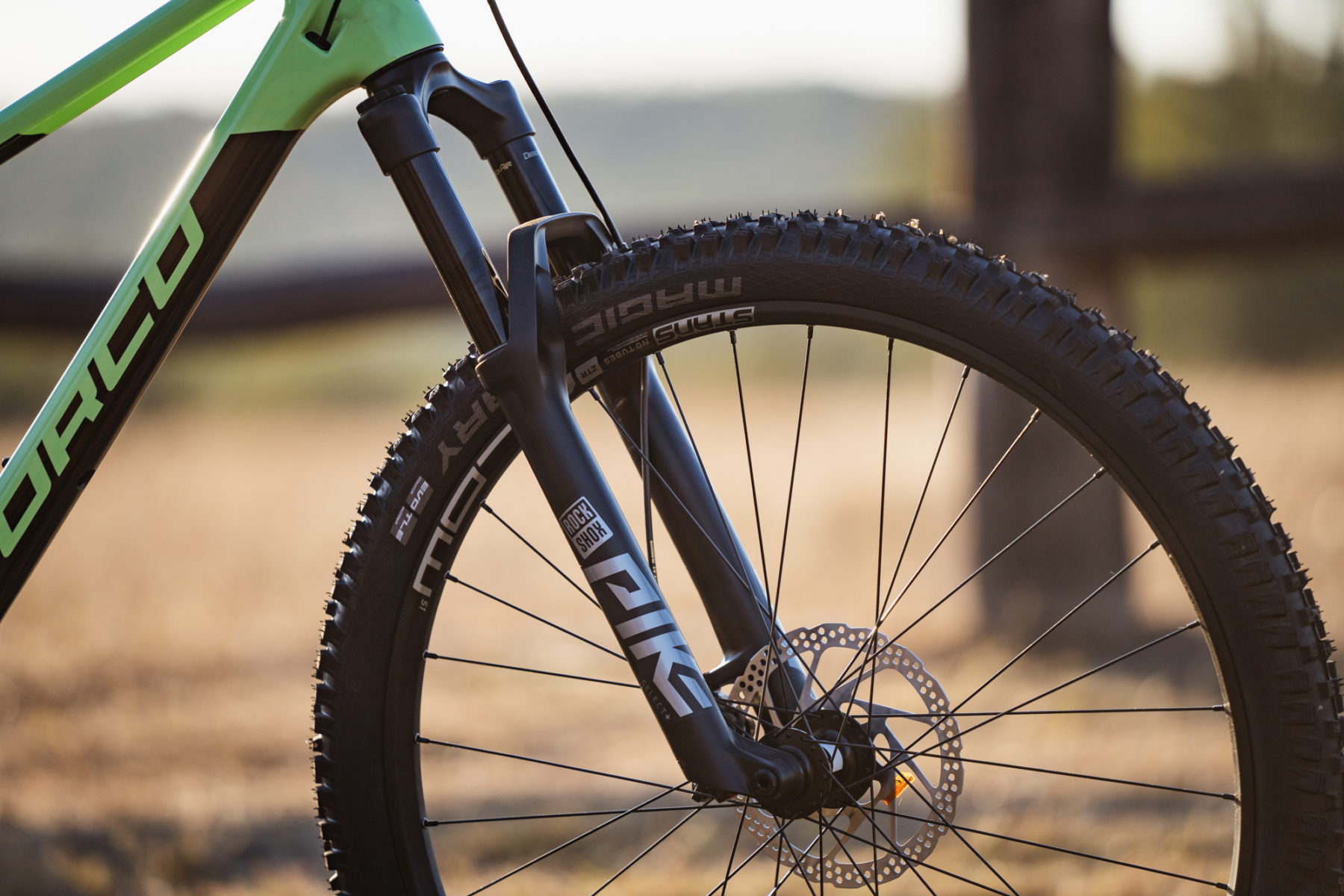

Up front is a 140mm travel RockShox Pike fork, which you’ll find on each one of the new Optic models. Keeping on trend, the fork offset has been reduced to 42mm, rather than the more commonly spec’d 51mm. This increases the trail measurement (129mm for those playing at home), providing greater composure at high-speed.
Future-Forward Geometry
Matching the newly pumped-up fork and shock spec, Norco has also cranked the geometry dial on the Optic to bring it right up to date. There’s a slack 65° head angle that’s paired to a significantly longer top tube, with reach measurements as follows: 420mm (S), 450mm (M), 480mm (L), and 510mm (XL). Completing the long reach + slack head angle + short fork offset equation, Norco is running a 40mm stem length on all Optic models and frame sizes.
The seat angle has also been steepened to 76°, which brings the rider forward and position the centre of gravity further towards the front tyre’s contact patch. Chainstay lengths have been tweaked slightly, and carry forward Norco’s size-specific system, with a shorter rear centre on smaller frame sizes and longer rear centres on the bigger frame sizes.
What Optics Will We See In Australia?
Norco is launching three Optic models to begin with, all of which are built around the same chassis that features a carbon fibre mainframe paired to an alloy sub-frame. With its new aggro-attitude, the Optic frame receives ISCG 05 chainguide tabs, and there’s clearance to run up to a 2.6in wide rubber. The frame also features integrated armour, semi-internal cable routing, and a sloping top tube for added standover clearance.
All three models get a RockShox Pike fork and the custom Super Deluxe Ultimate Turbo Extreme rear shock, and you’ll also see the same X-Fusion dropper post and Schwalbe tyre combo throughout the line.
Update: All four frame sizes (Small through to X-Large) will be coming into Australia for both the Optic C2 and C3 models. The top-end Optic C1 model will only be available in Medium through to X-Large sizes.
What about alloy Optics? The answer is ‘no’, because this bike is carbon-only. If you’re after a lower-priced bike made from metal, what you’re looking for is the latest Fluid, which features an aluminum frame with 120mm of rear travel and a 130mm travel fork. Pricing kicks off at $2,299 for the 2020 Norco Fluid FS 3, and goes up to $3,499 for the 2020 Norco Fluid FS 1.

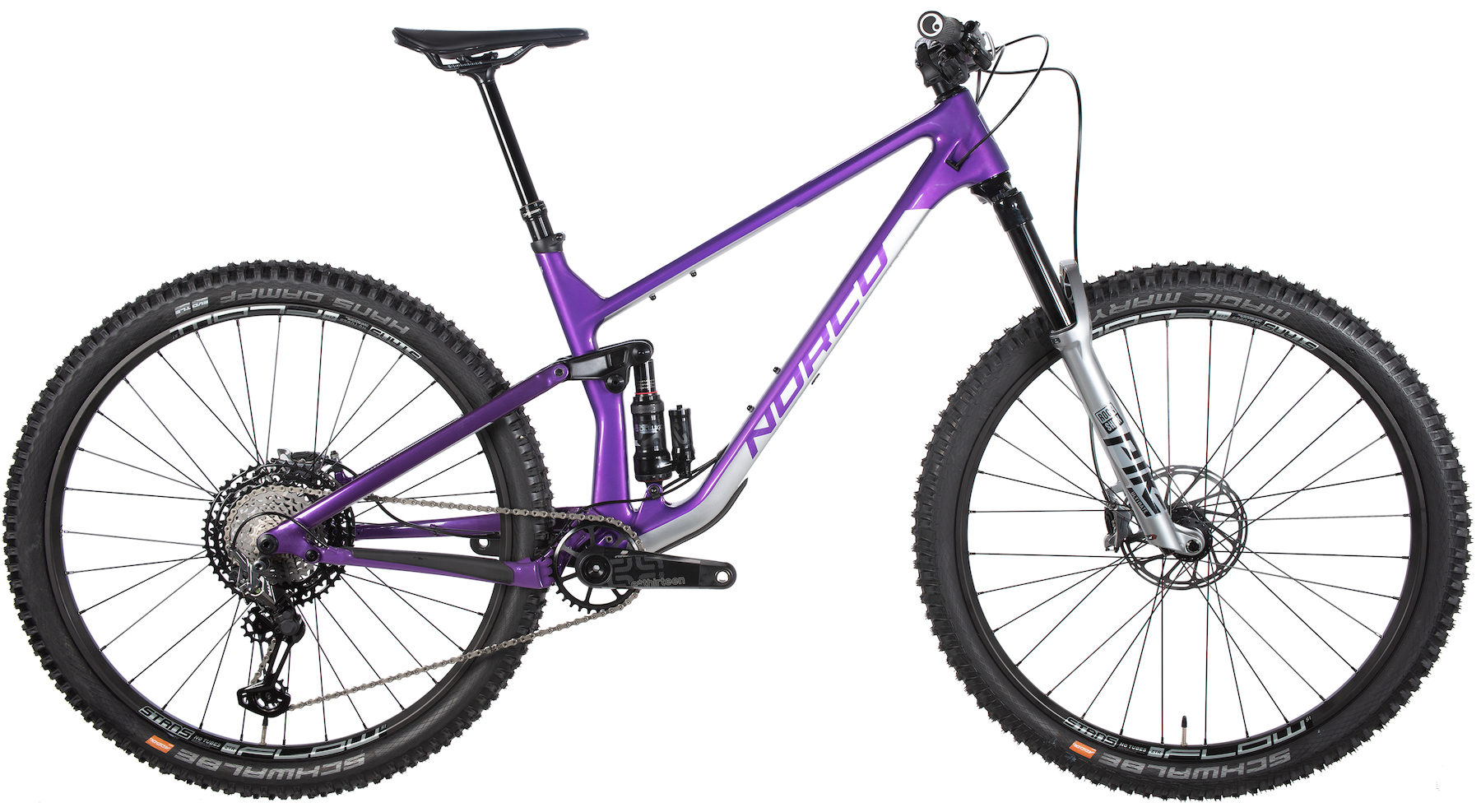

2020 Norco Optic C1
- Frame | Carbon Fibre Mainframe & Alloy Rear, 125mm Travel
- Fork | RockShox Pike Ultimate, Charger 2 Damper, 42mm Offset, 140mm Travel
- Shock | RockShox Super Deluxe Ultimate DH
- Wheels | DT Swiss 350 Hubs & Stan’s NoTubes Flow S1 Rims, 29mm Inner Rim Width
- Tyres | Schwalbe Magic Mary Super Gravity Addix Soft 2.35in Front & Hans Dampf Snakeskin Addix Soft 2.35in Rear
- Drivetrain | Shimano XTR M9100 1×12 w/e*13 TRS Race Carbon 30T Crankset & 10-51T Cassette
- Brakes | Shimano XTR M9120 4-Piston, 180mm Rotors
- Seatpost | X-Fusion Manic Dropper Post, 31.6mm Diameter
- RRP | $6,999 AUD
2020 Norco Optic C2
- Frame | Carbon Fibre Mainframe & Alloy Rear, 125mm Travel
- Fork | RockShox Pike Select Plus, Charger 2.1 Damper, 42mm Offset, 140mm Travel
- Shock | RockShox Super Deluxe Ultimate DH
- Wheels | DT Swiss 350 Hubs & Stan’s NoTubes Flow S1 Rims, 29mm Inner Rim Width
- Tyres | Schwalbe Magic Mary Super Gravity Addix Soft 2.35in Front & Hans Dampf Snakeskin Addix Soft 2.35in Rear
- Drivetrain | SRAM GX Eagle 1×12 w/X1 Carbon 30T Crankset & 10-50T Cassette
- Brakes | Shimano M520 4-Piston, 180mm Rotors
- Seatpost | X-Fusion Manic Dropper Post, 31.6mm Diameter
- RRP | $5,999 AUD
2020 Norco Optic C3
- Frame | Carbon Fibre Mainframe & Alloy Rear, 125mm Travel
- Fork | RockShox Pike Select, Charger RC Damper, 42mm Offset, 140mm Travel
- Shock | RockShox Super Deluxe Ultimate DH
- Wheels | Novatec Hubs & Stan’s NoTubes Flow S1 Rims, 29mm Inner Rim Width
- Tyres | Schwalbe Magic Mary Super Gravity Addix Soft 2.35in Front & Hans Dampf Snakeskin Addix Soft 2.35in Rear
- Drivetrain | SRAM NX Eagle 1×12 w/X1 Carbon 30T Crankset & 11-50T Cassette
- Brakes | Shimano M420 4-Piston, 180mm Rotors
- Seatpost | X-Fusion Manic Dropper Post, 31.6mm Diameter
- RRP | $4,799 AUD
With all of those changes, the new Optic certainly looks like a very different pie to the last one we rode. We’ll have a 2020 Norco Optic arriving soon for testing, so stay tuned for our first impressions of this newly pumped-up trail ripper. In the meantime, we’d love to hear what you folks think of the Optic, so make sure you tell us your thoughts and ask any questions you’ve got down below.
For more information on the new Optic, head to the Norco website, or get in touch with Advance Traders to find your nearest Norco dealer in Australia.
