Specialized Enduro 2017 – Even More Enduro

Long before the EWS, open-face helmets with goggles or matchy-matchy kit, there was the Specialized Enduro.  This was a bike that defined the category before there even was a category to define. The chicken and egg of the bike world, or something like that. And just like the sport of Enduro has been evolving, so to has the Specialized Enduro. Its latest incarnation is this stunning piece of work you see before you today.

S-Works Enduro FSR Carbon 29/6Fattie. 13.2kg of category blasting goodness.
Specialized Enduro 2017_LOW6756

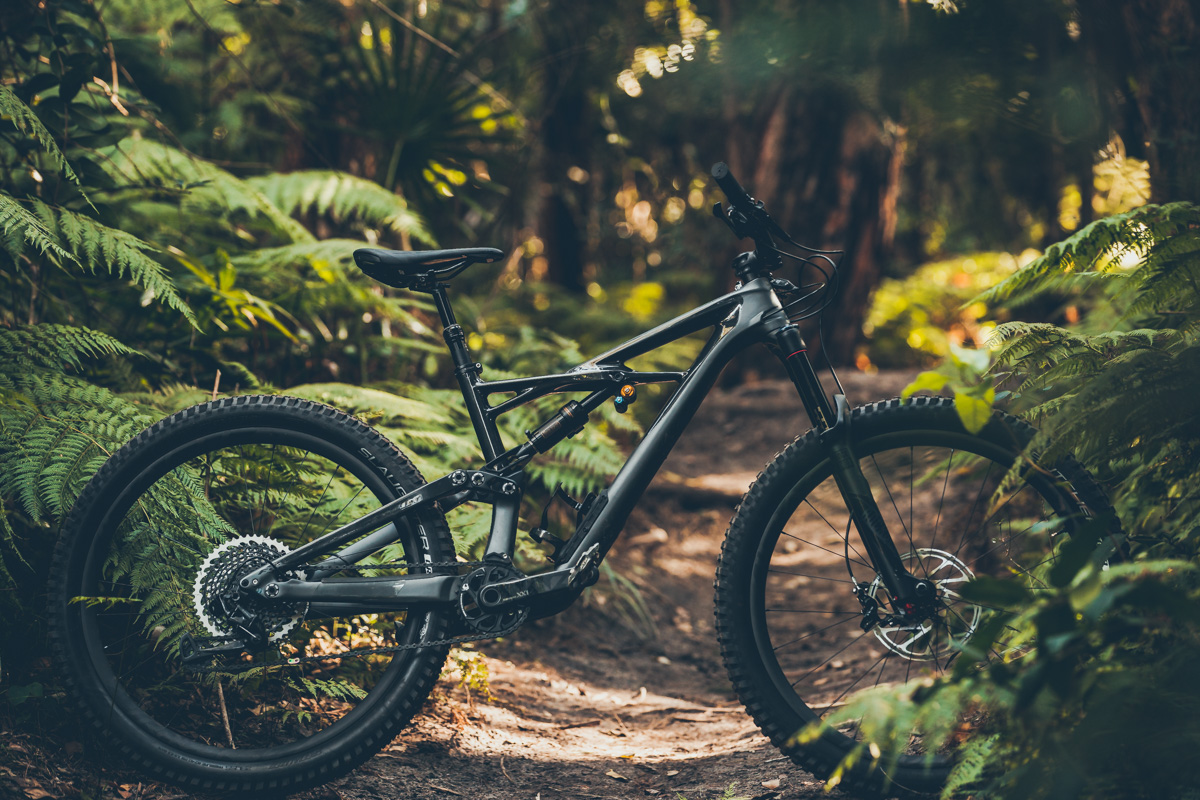

The black on black S-Works Enduro FSR Carbon 650B. Only 13.1kg on the scales, whoa.

This bike’s reputation is superb, for many years it has exemplified the versatile mix of insane downhill speed and steady climbing efficiency that the sport of Enduro demands. With Jared Graves on board Specialized now, the brand’s commitment to the sport of Enduro racing is more apparent than ever, and we find it hard to imagine a better weapon for doing battle on the EWS than the new Enduro.

Very early on during our first ride, comfortable enough to push the boundaries just a little bit…

We were lucky enough to get some time on the Enduro on some of our local trails ahead of the official launch, and we’ll be following this initial report up with a full review ASAP. For now, let’s take a look at what the Big S have created!

The X-Wing frame design carries over similar shapes from the existing Enduro platflorm.
The X-Wing frame design carries over similar shapes from the existing Enduro platflorm.

Key points:

Options in all wheel sizes

Boost hub spacing

More travel

More robust and sensible construction

Expansion of Öhlins suspension partnership

650B and 29er/6Fattie options:

Time to delve into everyone’s favourite topic: wheel sizes! Specialized are covering all bases with the Enduro, so no matter what hoops you prefer, they have you sorted. For our test ride, we had a 650B with 2.6″ tyres, and 29er with 2.3″ tyres.

Specialized Enduro 2017_LOW6759
The Specialized S-Works 650B with 2.6″ tyres.
Specialized Enduro 2017_LOW6984
Chunky tread on the 650B Enduro will promote a bit of reckless shredding in anyone.

If you thought that 650B had won the day in the long-travel and Enduro racing world, that’s not the case. If anything, 29″ wheels are making a stronger push than ever into this realm. Take a look at the recent EWS Colorado podium if you want proof, where all three podium spots were taken out by 29ers! While we’re yet to see Plus sized wheels really blossom at the upper end of Enduro racing, it’s only a matter of time we feel.

Either way, Specialized have taken a very sensible approach with the new Enduro, offering the bike in a dedicated 650B version and a 29er version that can accommodate also accept 6Fattie (or 27.5+) wheels.

The new 650B Fattie specific treads, 2.6".
The new 2.6″ treads on 30mm wide Roval Traverse rims. These big tyres will fit the standard 650B Enduro, even though they’re verging on ‘Fatties’. Now we’re talking!

This approach makes a tonne of sense – why produce three different frames for the various wheel sizes, when you can produce two instead?  Having said that, Specialized aren’t actually speccing any Enduro models with 6Fattie wheels right out of the box. If you want 6Fatties then it’s a swap you’ll need to negotiate with your dealer, but at least it is a possibility.

Interestingly, unlike some other frames which are designed to run either 27.5+ or 29er wheels (for instance the Pivot Switchblade or Santa Cruz High Tower) the new Enduro doesn’t use any headset cups or other geometry adjustments if you’re switching between wheel sizes.

You do need to be aware that swapping wheels will have an impact on the bike’s bottom bracket height – a 29er wheel with 2.3″ tyres gives you a BB height of 352mm, swap this for a 27.5 x 3.0″ 6Fattie setup and you get a BB height of 345mm (or 339mm if you use 2.8″ tyres).Specialized Enduro 2017_LOW6795

Loads of travel, but the Enduro manages to hide it in a bike that never feels too much to manage.
Loads of travel, but the Enduro manages to hide it in a bike that never feels too much to manage.

Looking at wheel/tyre clearance, the 29er/6Fattie frame will accommodate 29×2.5″ tyres or up to 3.0″ with a 6Fattie setup. The 650B Enduro can accept up to a 2.6″ tyre without a worry, which is what we ran on our test bike.


Specialized Enduro 2017_LOW6611
432mm stays on the 29/6Fattie and a slacker 65.5 degree head angle.

Even more aggressive geometry:

The Enduro was already slacker than a fruit picking backpacker with a Bundy hangover, but things get more laid back once again.  On the 650B bike you’re looking at a 65.5-degree head angle, while the 29er frame is half a degree sharper at 66-degrees.

Those short chain stays that have always given the Enduro such a playful ride remain. On the 650B frame they’re just 425mm, while on the 29/6Fattie frame they’re are a tad longer at 432mm (which is super given it’ll take a 3.0″ tyre). The move to Boost rear hub spacing is key in getting the rear end so short with such big rubber.


Specialized Enduro 2017_LOW6632
165mm travel out the back on the 29er.

More bounce, more robust:

In both 650B and 29er formats, the Enduro gets a little more travel, pushing up into some truly downhill territory. There’s now 170mm at both ends on the 650B, while the 29er has 165mm rear and 160mm out front.

170mm RockShox Lyrik leads the way for the 650B Enduro.
170mm RockShox Lyrik leads the way for the 650B Enduro.

Specialized Enduro 2017_LOW6935

Practicality gets a couple of big wins: the Enduro has a regular 73mm threaded bottom bracket shell AND every single bearing in the suspension is now exactly the same size, making servicing at lot less complex.

Bridge-less seat stays and a robust linkage with 8mm allen key hardware. Tough!
Bridge-less seat stays and a robust linkage with 8mm allen key hardware. Tough!

The incredibly clean lines are enhanced by the move to internal cable routing. It’s done properly too, with carbon sleeves guiding the brake and gear lines through the frame, so you’re not left swearing and trying to coax a brake line through the guts of the bike. Both gear and brake lines are now routed over the top of the bottom bracket shell, which reduces the amount of movement in the lines as the suspension cycle, for less chance of cable rub or snagging on debris.

Specialized Enduro 2017_LOW6641
Without the need for front derailleur options, this area can be as stiff, compact and light as it can be.

Front derailleurs are banished:

You won’t find a front mech on any bike in the new Enduro range. Actually, you have to look damn hard to find a front derailleur just about anywhere in Specialized’s 2017 line up! All new Enduros are 1x specific, with no option to run a front derailleur. The top dog S-Works models we rode had the amazing SRAM Eagle drivetrain, which with a 500% range makes a front mech redundant anyhow.

SWAT Door:

When we first saw Specialised’s SWAT Door down tube storage, we cringed. But it took just one ride to realise that it makes a huge amount of sense, and we’re big fans now. It’s great to see the SWAT Door making its way onto the new Enduro, letting you stuff all your spares inside the frame where they’re secure, protected and never left behind.

SWAT Door.
SWAT Door.

Take one look at the trends in Enduro racing, and you’ll quickly see fewer and fewer backpacks as riders look to lighten the load. Having the SWAT Door makes this just a little easier, and means no more floppy pockets or taping crap to your bike.

Öhlins Suspension Partnership:

Swedish suspension gods, Öhlins are expanding their mountain bike range in conjunction with Specialized.
Specialized Enduro 2017_LOW6643
Öhlins STX22 rear shock built for the Enduro. Low and high speed compression adjustment, rebound and also Auto Sag from Specialized for simple setup.

Specialized’s association with those premium Swedish suspension gurus, Öhlins, continues. This prestigious partnership sees the Pro and S-Works models equipped with the amazing STX22 rear shock. We’re happy to see that Specialized has moved away from Cane Creek on their high-end Enduros – our experience with the Cane Creek was less than perfect. We’re very impressed by the simple but highly effective adjustability of the STX22. Because the shock is engineered for this bike specifically, it doesn’t need a huge range of rebound or compression adjustability as it’s valved appropriately from the get-go.

Hucking is the new Enduro.
Yeah, we know. It’s hot.

On the S-Works 29er Enduro you’ll also find the Öhlins RXF 36 fork too. We reviewed the RXF 34 not long ago (check out the review here) and it’s damn impressive. We think the benefits of the Öhlins damping will be even more apparent in this longer travel scenario too. For now, the 650B version misses out on an Öhlins fork, but we’re sure there’s a 650B incarnation on the way.

Stay tuned for our full review of the Enduro when they begin to arrive in Australia. Yeehaa!
Stay tuned for our full review of the Enduro when they begin to arrive in Australia. Yeehaa!
