The not-so-minor details

Product

Focus SAM C Team

Contact

Derby Cycle Australia
www.focus-bikes.com

Price

AUD8,999.00

Weight

12.84kg

Positives

Essentials-only Enduro slayer.
Lively and smooth suspension.
Rapid out of every corner.
Great climber.

Negatives

Tyres and stem won't suit all riders' tastes.
No bottle mounts.

Eagerness: the Focus SAM C Team has it in spades. Like an excited dog pulling its owner about as it charges to sniff every tree and post, this is a bike that’s always in a hurry.


FLOW5243

After testing this bike’s alloy predecessor some years ago, we’ve been waiting impatiently for the inevitable carbon version to arrive. And here it is; an uncompromising, stripped back, pure Enduro machine, itching to tear your favourite descent a new one.

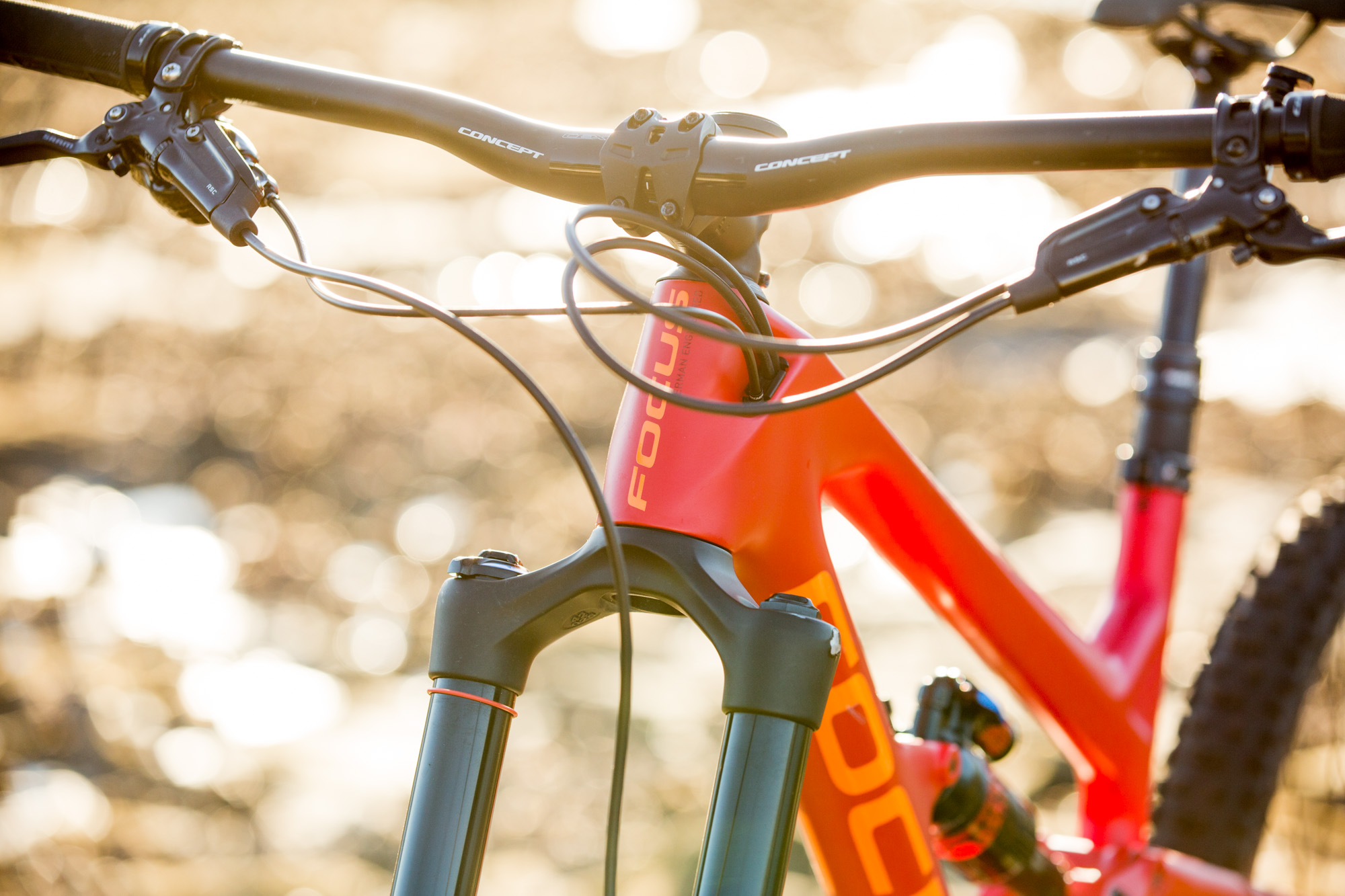

What a killer looking front end!

What a killer looking front end!


Construction

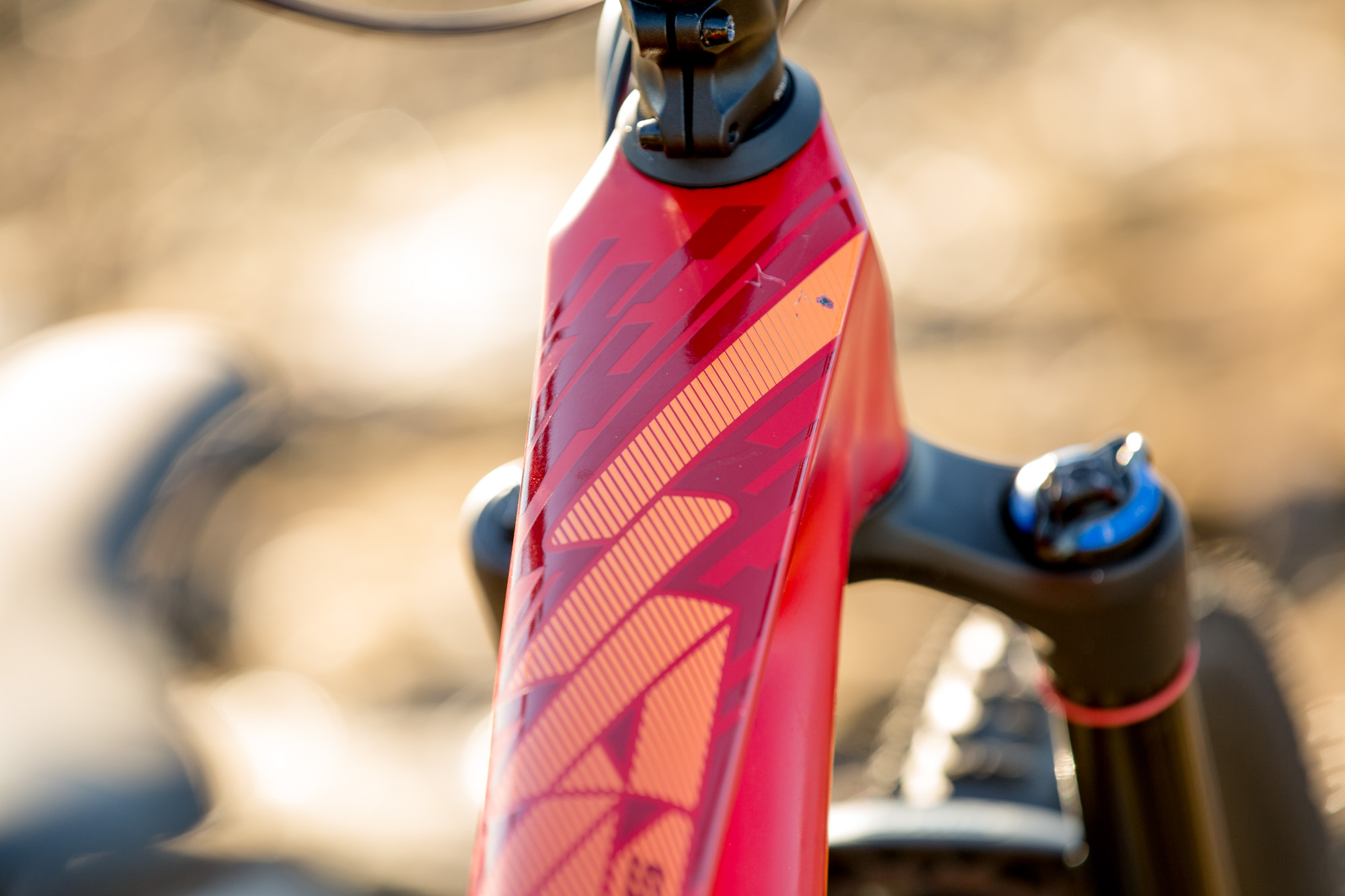

This is a fantastic looking bike. From a humungous diamond shaped top tube, it tapers down to a lean point out back, carbon throughout. With a sophisticated internal cabling system, the clean lines are uninterrupted, especially on this model with a single-ring drivetrain.

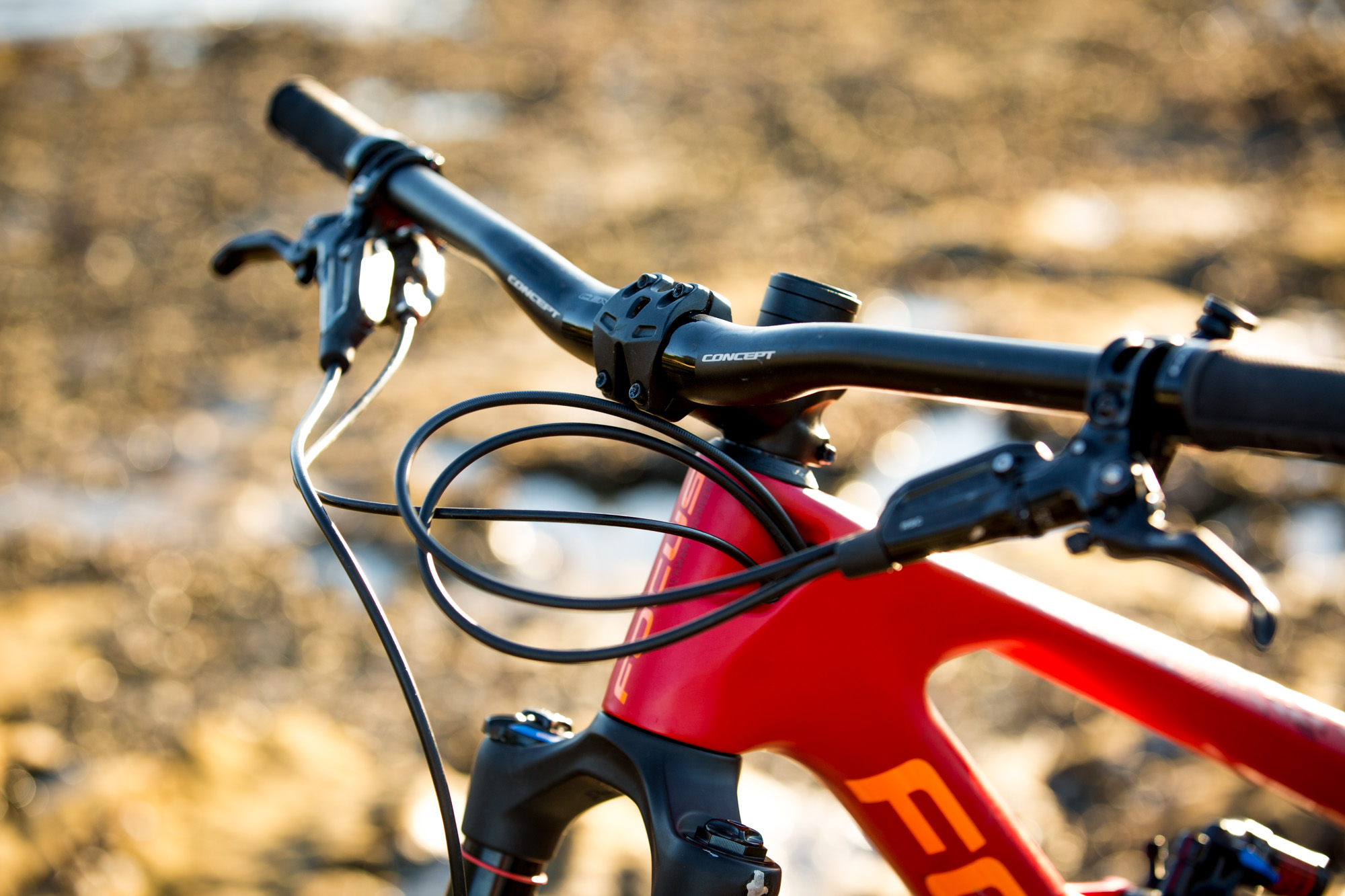

All the cables enter the left side of the head tube. We didn't hear any cable rattle inside the frame.

All the cables enter the left side of the head tube. We didn’t hear any cable rattle inside the frame.

There’s a kind of essentials-only approach with the Focus that is going to hold plenty of appeal for many riders: the suspension layout is easy to understand – this pushes that– there are no geometry adjustments, and the travel is fixed at 160mm too. The suspension is from RockShox, top-of-the-line stuff, but without resorting to exotic, lesser-known manufacturers or super complicated dampers.

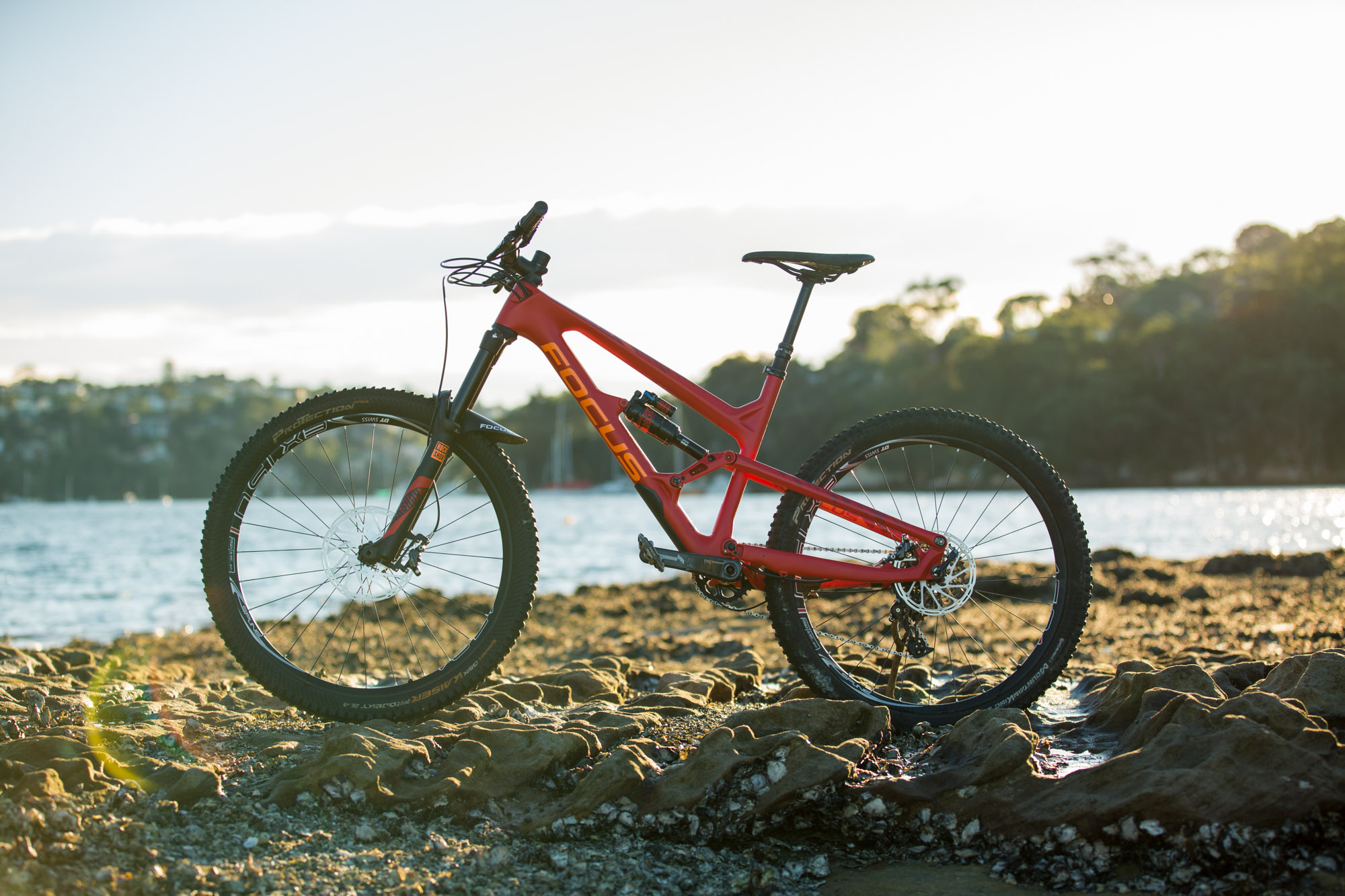

FLOW5162

Basically, it has everything you need to win, and nothing you don’t. That’s not to say there aren’t some nice embellishments – the neat chain slap and down tube protection for instance – but it’s a bike that puts low-weight, geometry and suspension performance ahead of frame features.


Suspension

The suspension is a simple linkage-driven single-pivot. Easy to understand and maintain.

The suspension is a simple linkage-driven single-pivot. Easy to understand and maintain.

The suspension is a simple linkage-driven single-pivot setup, handing out 160mm of very responsive, lively travel. It’s a buttery, supple suspension feel too, but with enough anti-squat it preserve the sprinty, excited performance under pedalling that we like about the SAM.

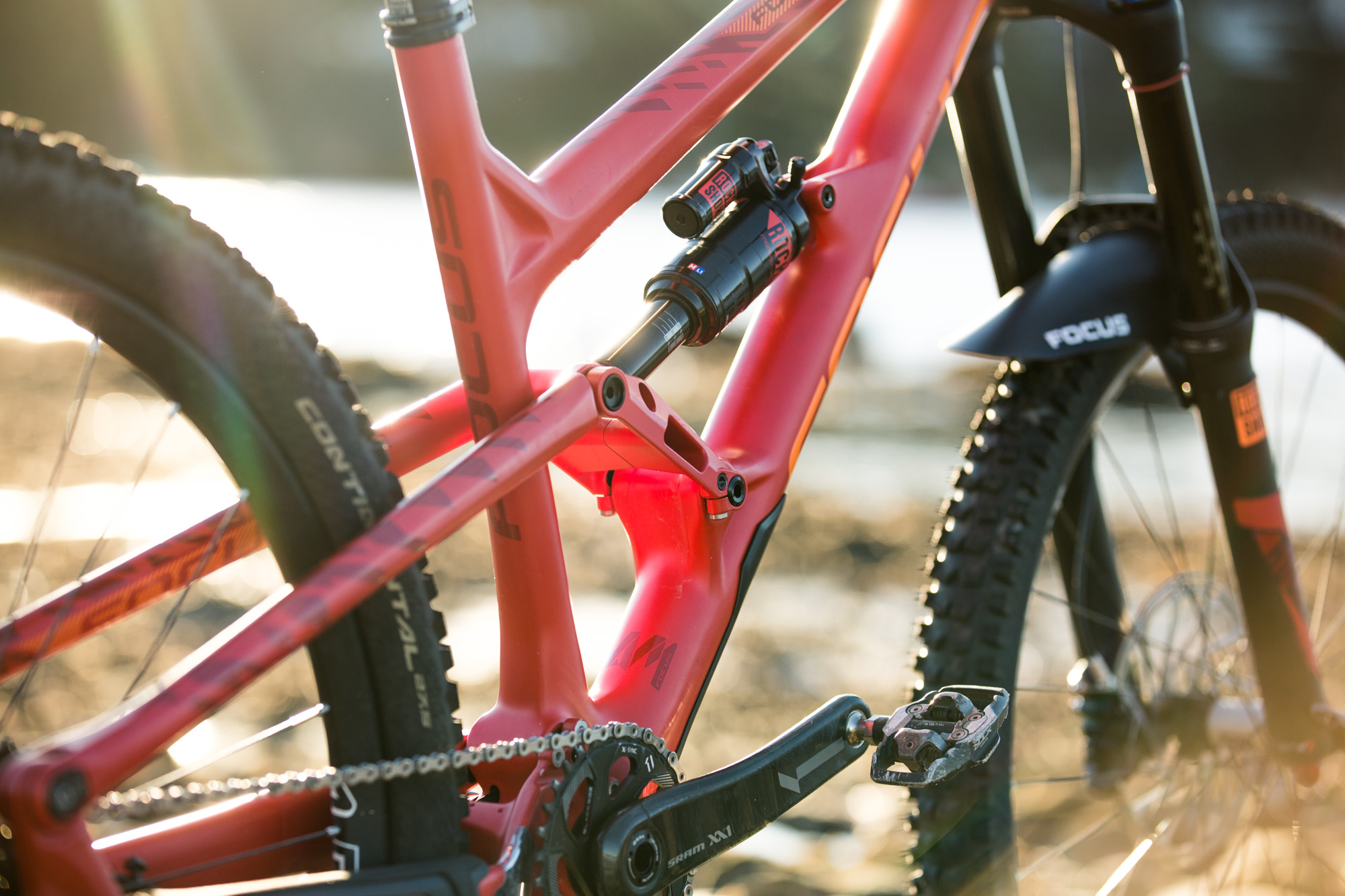

FLOW5155

The RockShox Monarch is easily tuned – just one rebound dial and a three-position compression lever keeps it simple. It’s a winner.

Compared to the whopping pivot axles we see on some bikes, the SAM’s pivot points are quite petite, with a pinch-bolt arrangement on the linkage that’s not common. Despite appearances, it’s actually robust and stiff, with double row bearings at rear pivot to handle all the huge forces there. Make sure you keep an eye on the bolt tensions as we experienced a small amount of play from the lower linkage pivot, which was easily sorted and didn’t recur.

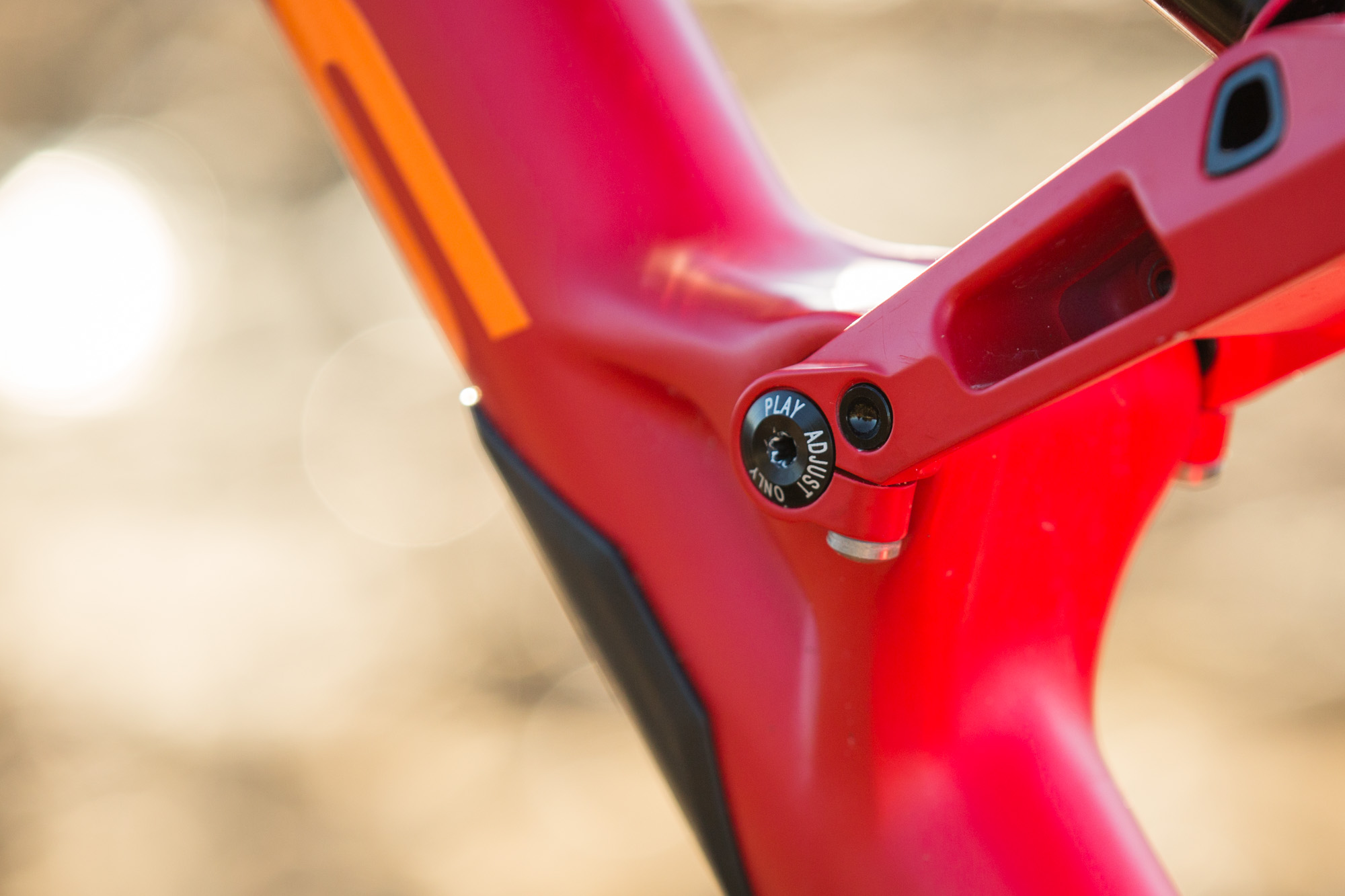

Keep an eye on the pinch bolts and axles - they need to be properly torqued to ensure no play develops.

Keep an eye on the pinch bolts and axles – they need to be properly torqued to ensure no play develops.

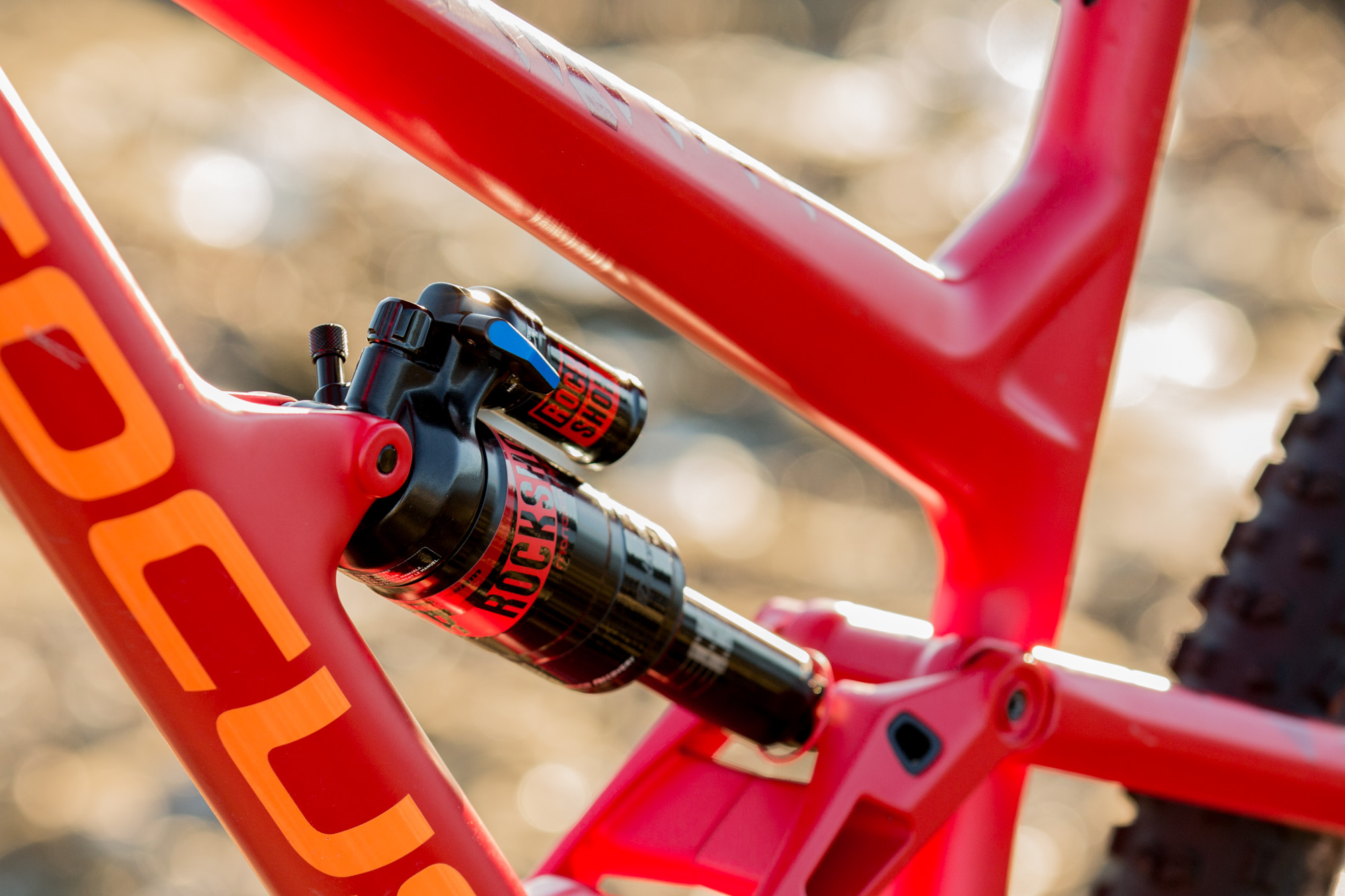

A RockShox Monarch Plus is housed centrally in the frame, which means no bottle mounts, so it’s a pack-only affair. Having the shock nestled there between your knees gives easy access to the compression lever, so you can quickly flick it into firmer setting on the climbs.

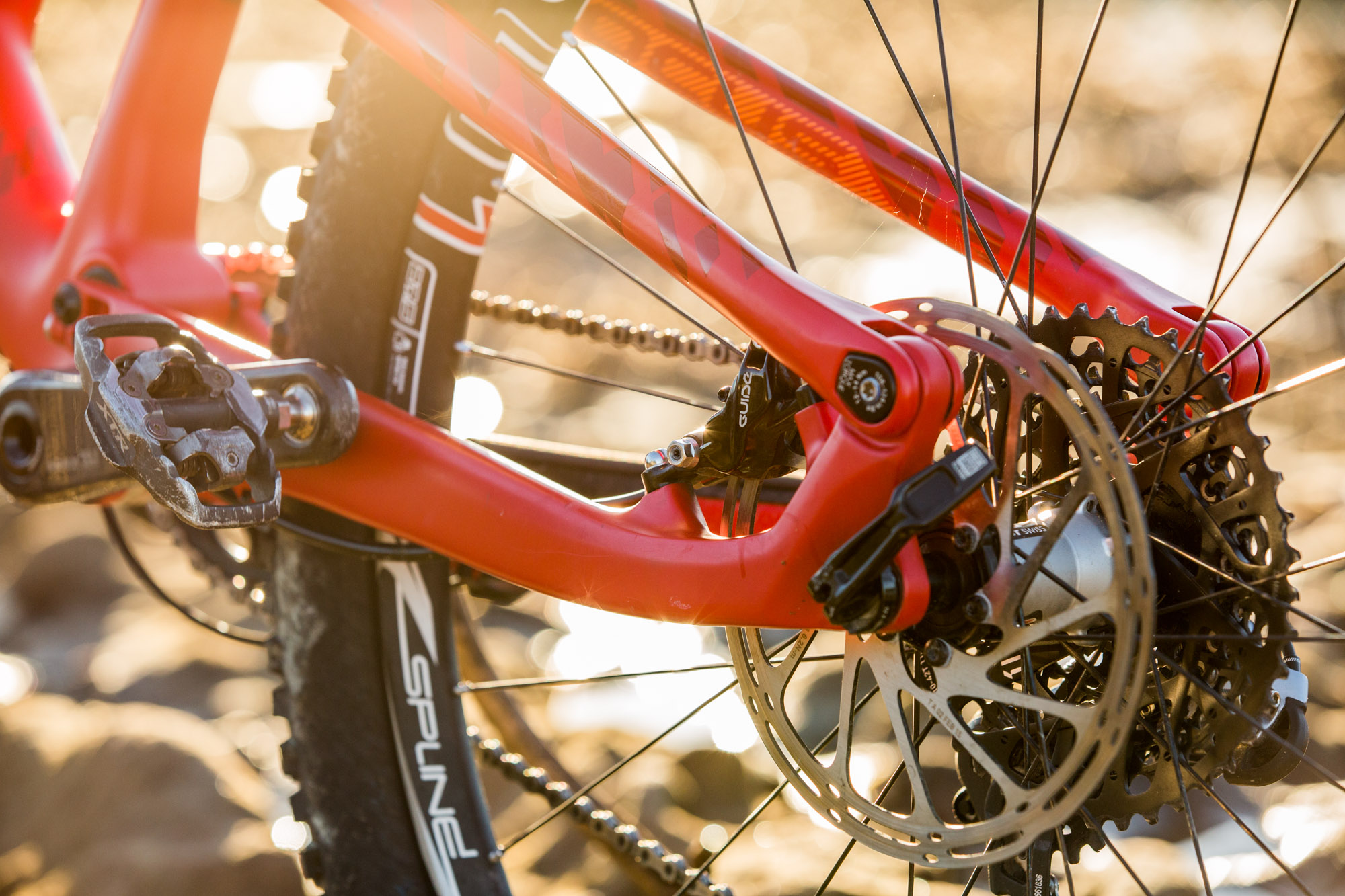

Double row bearing in the drop out pivot keep things steady in this high load area.

Double row bearing in the drop out pivot keep things steady in this high load area.


Components

It’s an attractively adorned bike, as it should be for the $8999 price tag. The premium SRAM XX1 drivetrain is a standout, with a 32-tooth chain ring. The drivetrain that started the single-ring revolution continues to impress us, its quiet, stable performance is brilliant. There’s no chain guide, but it’s possible to mount one off the ISCG tabs, which would be a good idea if you’re going racing.

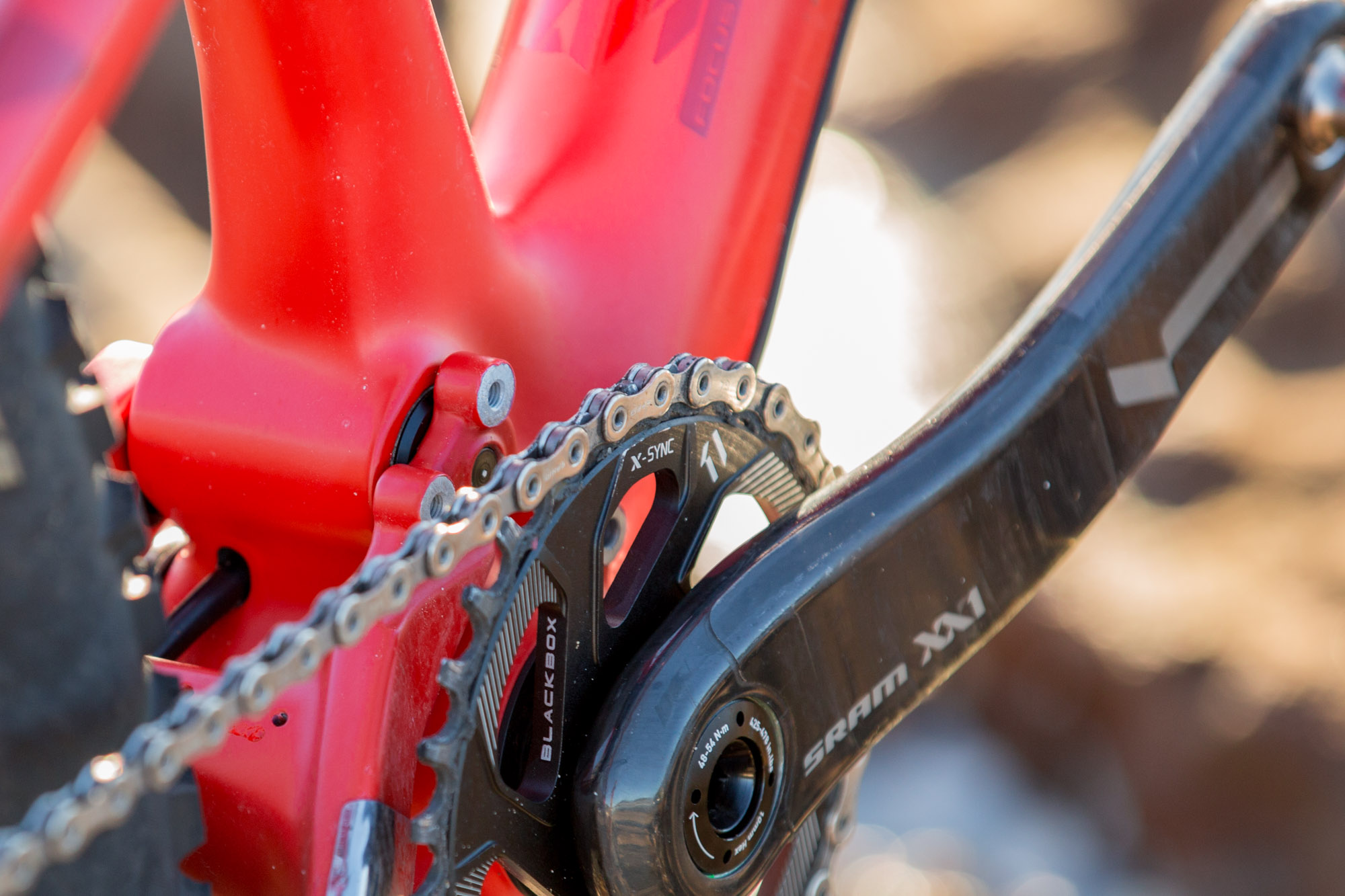

XX1. Still ruling the single-ring world.

XX1. Still ruling the single-ring world.

SRAM have been given the nod for the brakes too, with the premium Guide RSC stoppers. The ease of adjustment and robust lever construction are icing on the cake for these very powerful brakes. With a 200mm rotor up front, you’ll have all the braking confidence in the world.



The balanced suspension package is RockShox front and rear: Pike and Monarch, a pair that work superbly together, ironing out the roughest terrain, with perfectly matched rebound feel. You really get the feeling front and rear suspension are in sync.

We think the cockpit is the only area some riders may want to make some changes - maybe slightly shorter on the stem, and a carbon bar would be a nice touch.

We think the cockpit is the only area some riders may want to make some changes – maybe slightly shorter on the stem, and a carbon bar would be a nice touch.

We think the cockpit is one area some riders may look to tweak. The stem length is a smidge on the long side; given the bike’s sub-66 degree head angle, knocking the stem back to maybe 40mm would add a bit more snappiness to the slow-speed steering.

The DT/Continental wheel combo is worth comment too. The wheels have a taut, stiff precision about them, there’s no spokes pinging or complaining, even in the grisliest situations. The rims mightn’t be that wide, but the super stiff Conti tyres don’t need wide rims to help them hold their shape – they’ve got very firm sidewalls. Our bike had the aggressive Kaiser 2.4 up front and a Mountain King 2.4 out back. We love the confidence the robust construction of these tyres brings, but we did find the inflexibility of the sidewall and bead makes them prone to burping at lower pressures, the bead just doesn’t slide back into place like a more supple tyre.


Setup

Setup was straightforward. The sag gradients on fork and shock take the guesswork out of setting sag (20% up front, 30% our back), and the wheels are tubeless ready too of course. With the neat MatchMaker clamps for the brakes, shifter and dropper post, there’s only two bolts to worry about when dialling in your cockpit too.

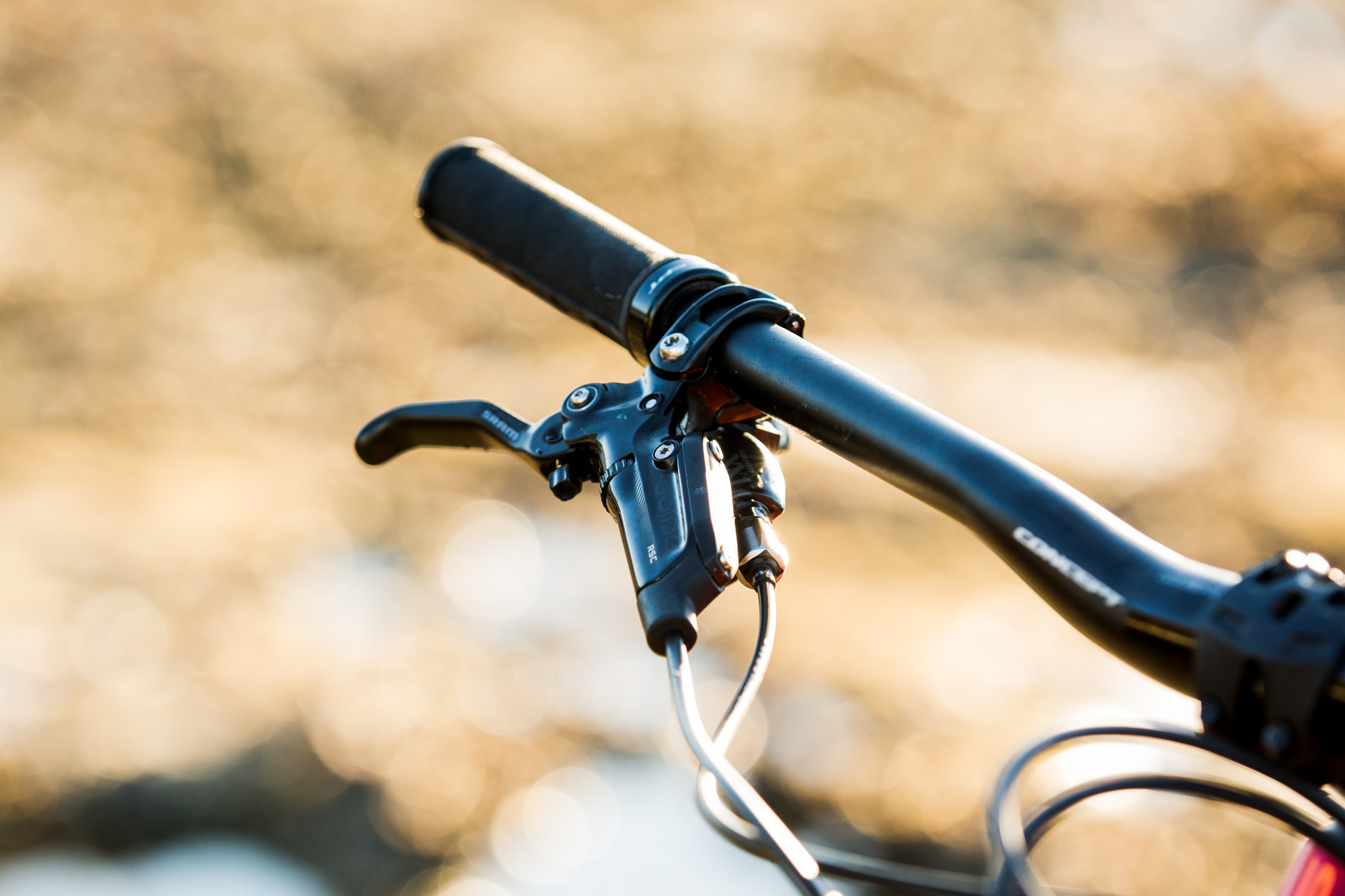

MatchMaker clamps clean up the cockpit.

MatchMaker clamps clean up the cockpit.


Ride

The SAM is built for the kind of riding where you’re expected to hit unfamiliar terrain at warp-speeds, where you might find yourself in a white knuckled rock garden one second, and then having to muscle through tight switchbacks the next. It’s a big ask, but that SAM has it covered.

Long up front, short out back. Perfect really.

Long up front, short out back. Perfect really.

With slack angles and roomy length offset by the short rear end, the SAM nails that stability/agility blend that’s the holy grail of Enduro bikes nowadays. Magic numbers, putting you in a confident position to bomb into dicey looking chutes, but not bogging you down when the trails turn twisty.

There’s a lot of urgency to the way this bike rides, even on flatter trails, it keeps shooting forward in a way that few Enduro bikes do. It sprints out of corners beautifully, feeling even lighter than it’s already impressive 12.8kg weight figure.

The gearing range with a 32-tooth ring suited our trails well.

The gearing range with a 32-tooth ring suited our trails well.

The liveliness of the bike is its standout attribute for us. It skims and floats over the chunder, but not in a skittish or unstable way. Rather it just holds excellent speed, and the buttery smoothness of the suspension seems to prevent the rocks from tugging at the tyres and holding you back. We really came to love the way the SAM could pump speed out of trails, letting your work the bike, pumping into terrain that would see you simply holding on for dear life on board a lesser bike.

We certainly used all the travel, but we never felt the shock slam into the end of its stroke.

We certainly used all the travel, but we never felt the shock slam into the end of its stroke.

When you get a bit wild, the progression in the SAM’s suspension is a life saver, and while we certainly used all the bike’s travel, we never had any awareness of bottoming out – it nestles up smoothly to those last millimetres of travel, rather than smashing through to bottom out.

Cornering grip is superb too. The same liveliness we’ve noted above keeps the tyres tracking the dirt in loose corners beautifully, and the bitey Continental Kaiser front tyre will dig deep. Long, seated, foot-out corners are a specialty of this bike too – it’s got that ‘moto’ cornering balance dialled!

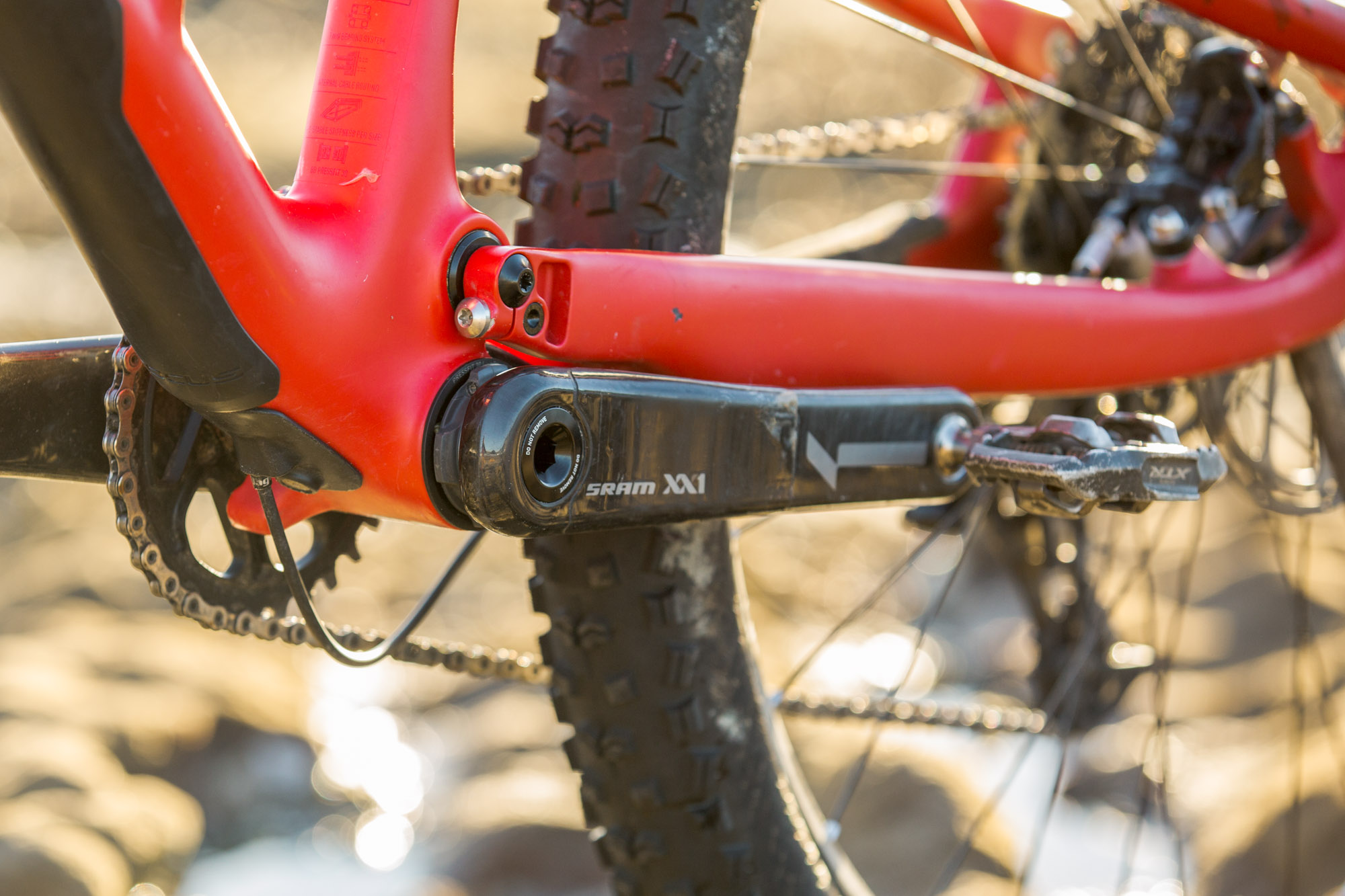

FLOW5205

The low pivot point doesn’t have a lot of anti-squat, but with the shock in its middle compression setting, the climbing performance is still excellent.

The SAM isn’t a ‘steady’ ascender like most Enduro bikes, it’s a genuinely enthusiastic and very capable climber. The low weigh is part of the equation, but the suspension nails a good balance of stability and traction when you flip the shock into its middle compression setting. The bike doesn’t use any proprietary travel adjustments or shock technologies, it gets the job done simply with a good balance of weight, central riding position and great suspension kinematics.


Overall:

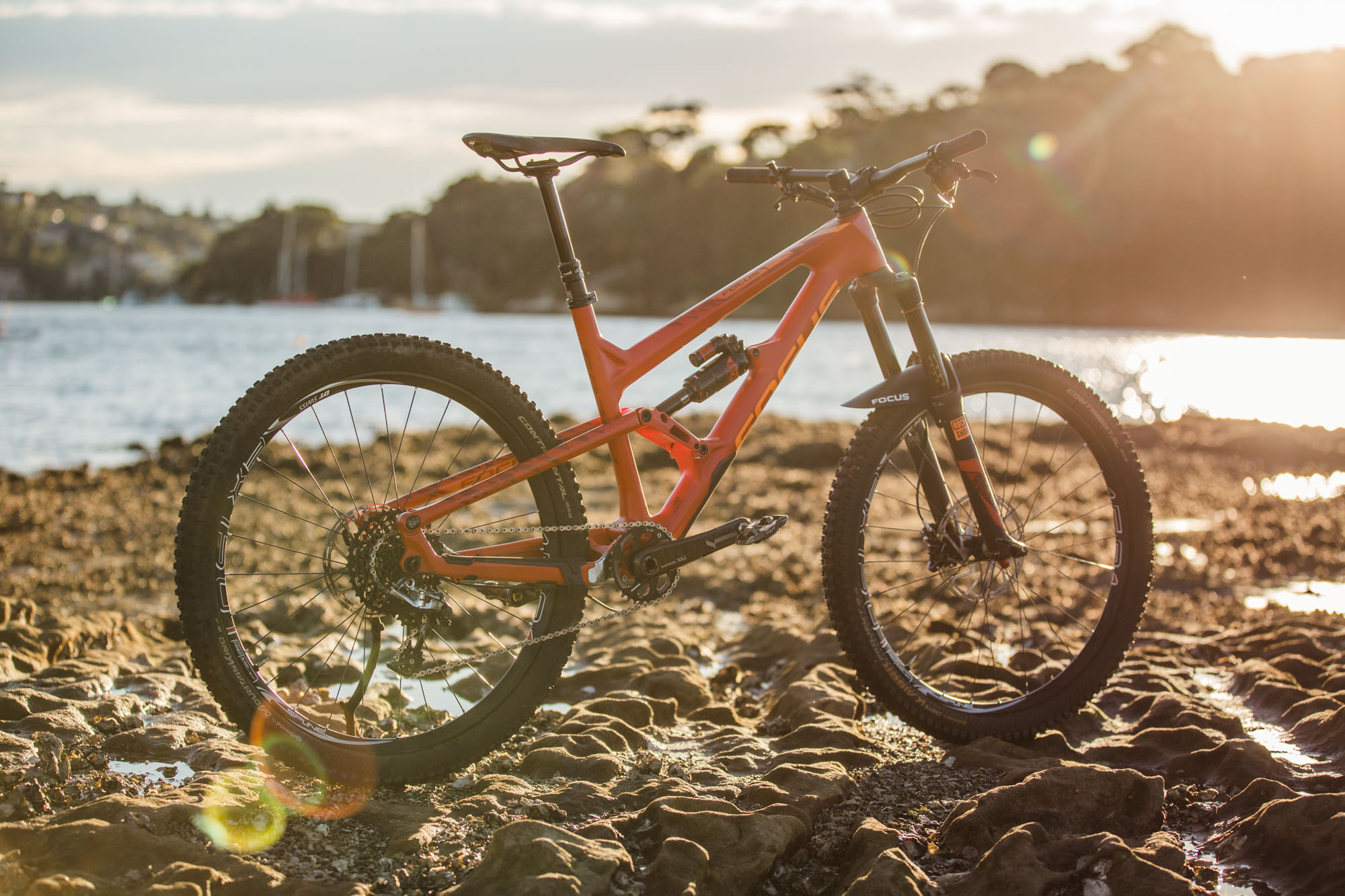

FLOW5097

A triumphant follow up to the original SAM we loved so much, the new SAM C Team is a superb Enduro machine. It might not be pushing the envelope in terms of frame features or suspension technologies, but that hardly matters when a bike rides so well. Indeed, it’s a perfect exemplar of why nailing the fundamentals of geometry and suspension kinematics should be the first priority. Light and agile, smooth and confident, the SAM is a class act on the Enduro scene.
