The not-so-minor details
FOX 36 Float RC2 160
Notice: Undefined index: host in /home/content/p3pnexwpnas03_data03/71/41242471/html/wp-content/themes/feeltheflow/single.php on line 228
Stiffer than your legs after an XCM.
Outstanding damping control.
Wheel removal is a little arduous.
FOX knew they had to hit back hard this year with the relaunch of the 36; since the arrival of the RockShox Pike 18 months ago, riders had been leaving FOX in droves, clamouring to get a Pike onto the front of their all-mountain/enduro rig. It was time to stop the rot!

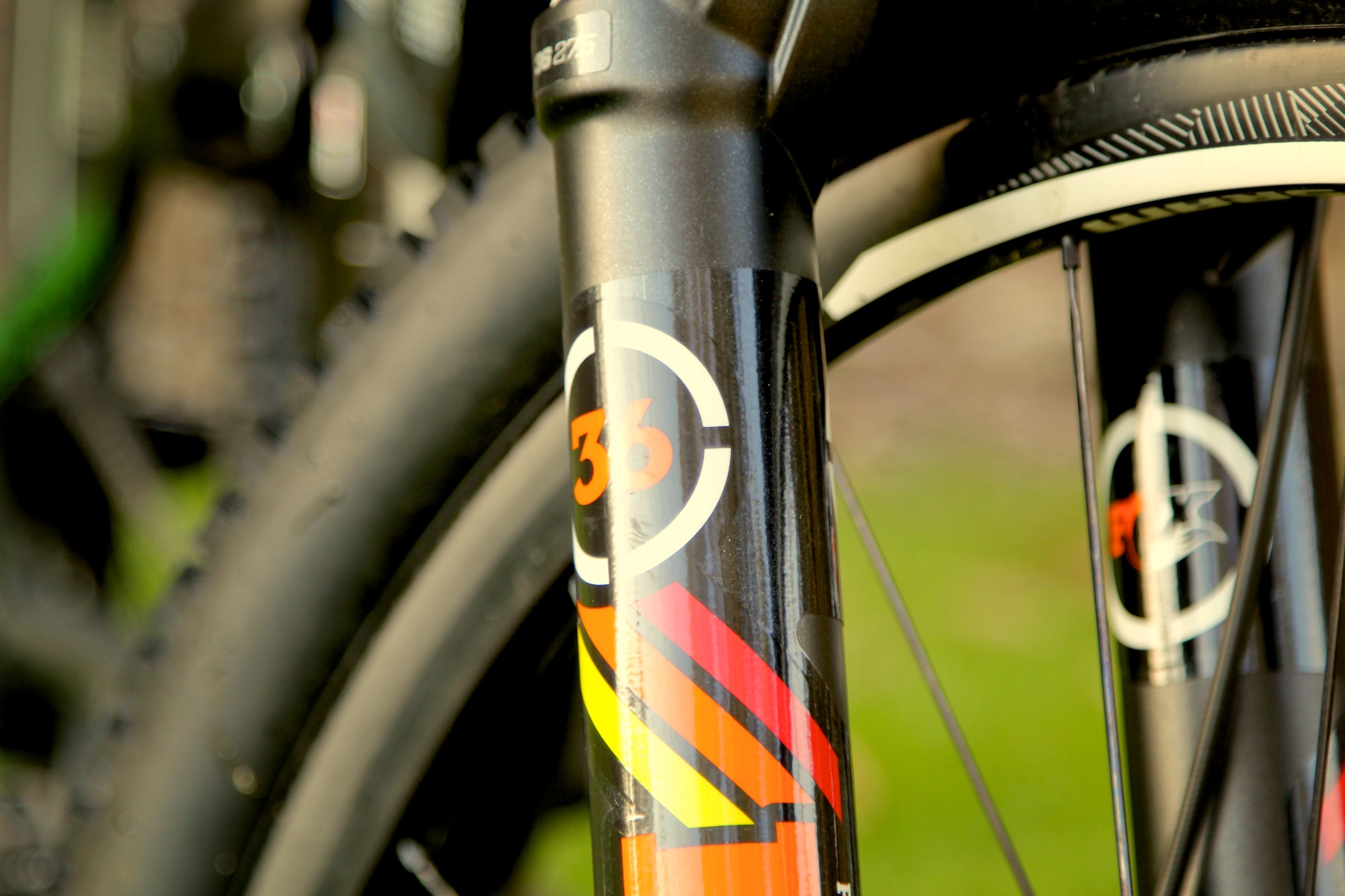

The vehicle FOX chose to launch their counter attack is the venerable 36 series. While there were other long-travel, single-crown forks before the 36 was released almost 10 years ago, it was this massive 36mm-legged beast from FOX that showed what was truly possible. For years, the 36 series set the standard of performance, stiffness, tuneability and versatility, and the fork’s status became legendary and legions of hardcore riders still regarded it as the leading single-crown fork… until the Pike arrived.
It’s no surprise that FOX want to reclaim their crown, and after a few weeks of riding the 2015 36 RC2, we think the King of All-Mountain might be back to regain his throne. Read our first impression of the FOX 36 here.
FOX have thrown a lot of firepower at the 2015 36, and it really is an entirely new fork. Or we should say forks, plural, because there are variants galore, in 26, 27.5 or 29” wheel sizes, with Float or TALAS (travel adjustable) options, and travel from 140-170mm. Our test fork is a 160mm-travel Float RC2.

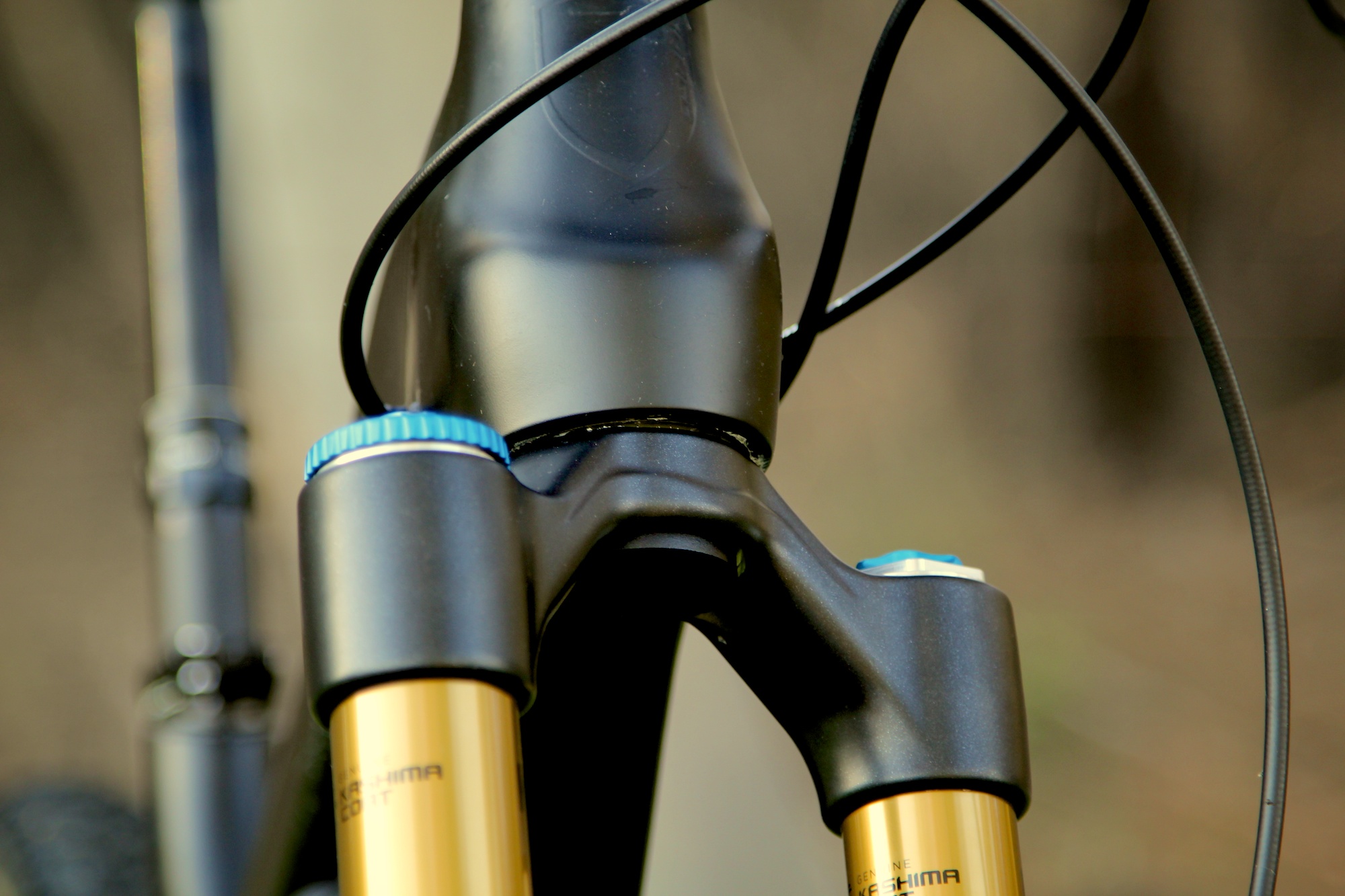

An obvious standout is the huge reduction in weight; the 36 Float now weighs about the same as the FOX 34 series (2.04kg for our fork) fork and is within 200g of an equivalent Pike. Not only is it lighter, but it’s also lower, with a the new crown assembly offering a shorter crown-to-axle length, so you can run a longer travel fork, without bumping up the ride height.

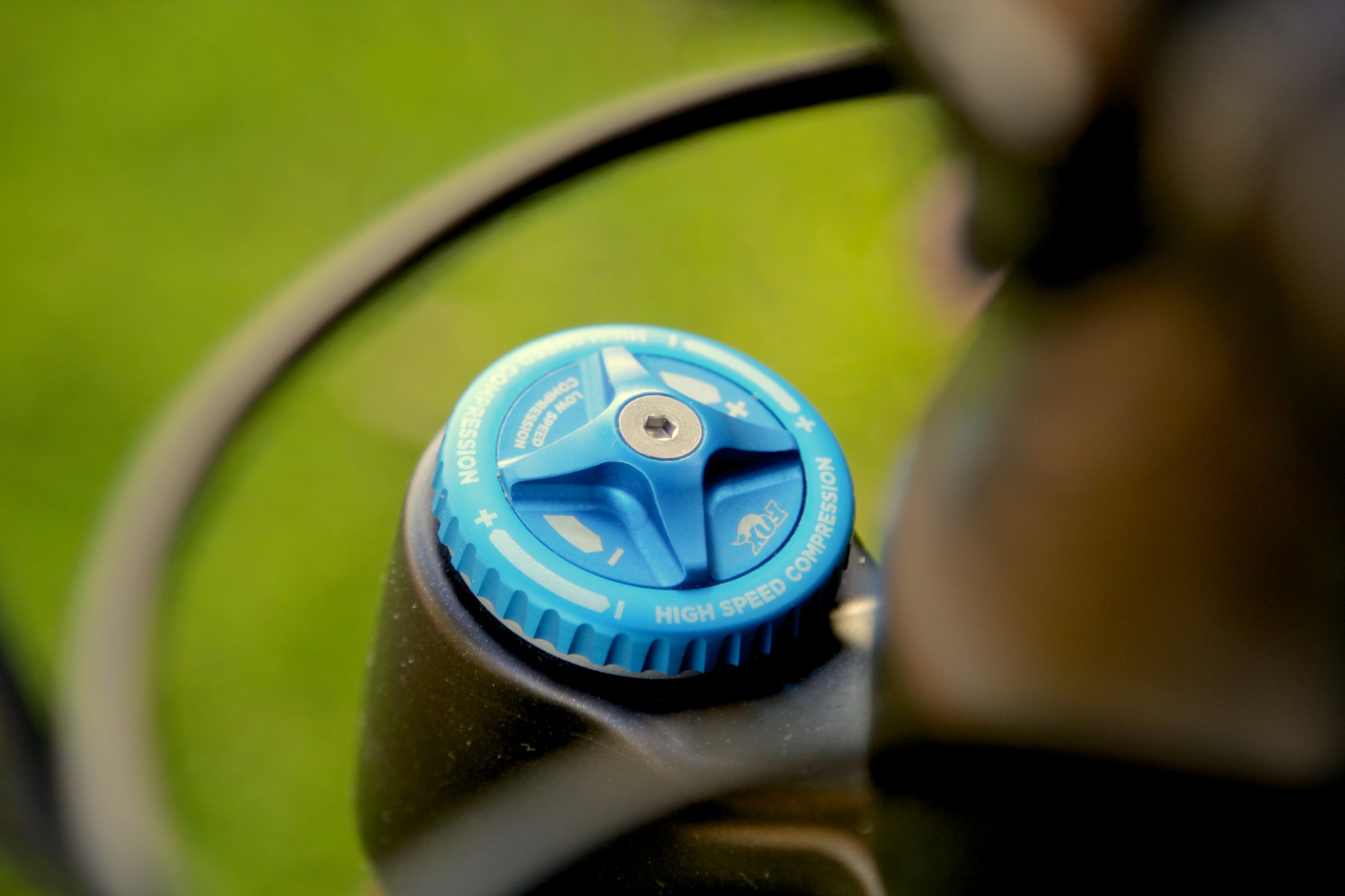

Other immediately noticeable differences include the absence of FOX’s CTD damper system, with an RC2 damper taking its place. This is a very good call. The CTD damper has never really found favour with the more high-performance end of the all-mountain market, where many riders come from a downhill background. It was felt that the CTD system lacked damping subtlety and control, and FOX have never managed to shake the stigma of their 2013 forks which were noticeably under-damped for hard impacts, forcing many riders to run their fork in the ‘Climb’ setting on descents in order to prevent the fork from diving. The new RC2 damper has external control of both high and low-speed compression, via big blue knobs, identical to the setup on the FOX 40 downhill fork.

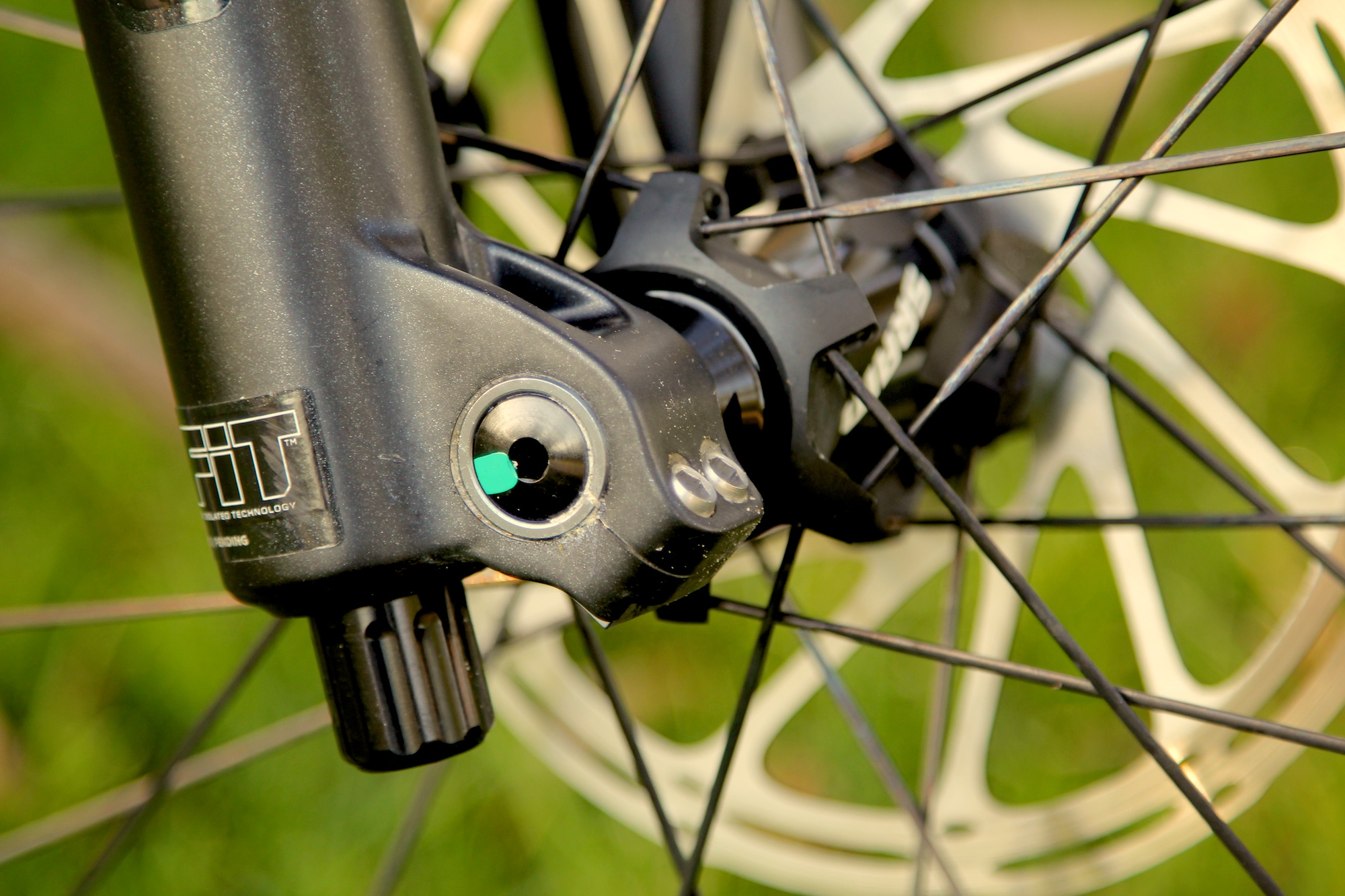

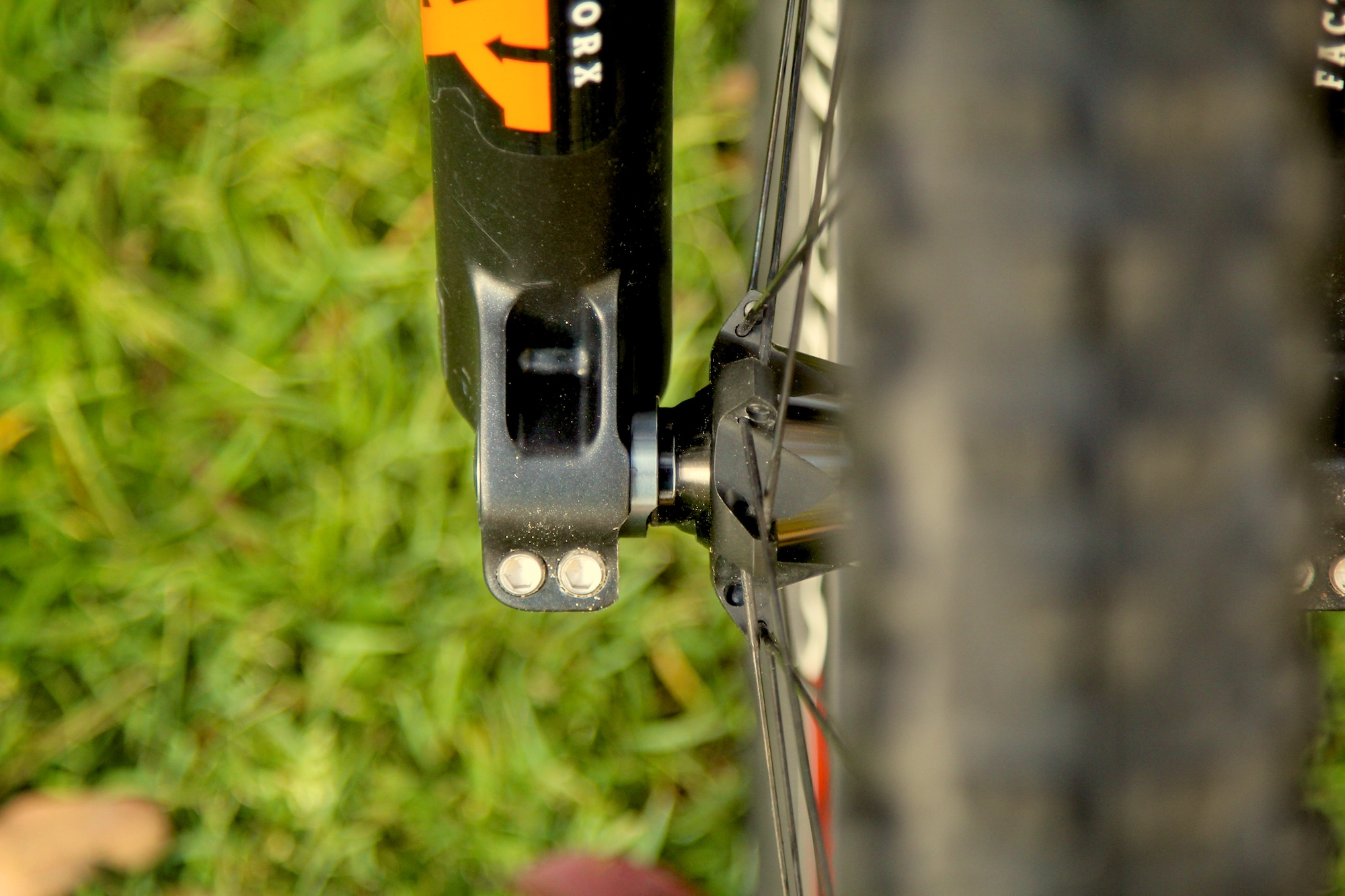

There’s no quick-release axle system, instead FOX have gone for maximum stiffness, with a dedicated bolt-up axle system that uses a 5mm Allen key to lock your wheel in tight. Again, this is a wise call we feel – the stiffness of the 36 was one aspect that made this fork legendary, and it makes sense to reinforce this advantage. Ok, taking your wheel out is a pain, but it’s a trade-off that we can live with. The axle system can cleverly take 15mm or 20mm hubs too, with reducers to accommodate either setup.
Less obvious changes are highlighted by an all-new air spring assembly, and FOX has ditched the steel negative spring of earlier forks, using a self-equalising air spring for the negative chamber. This change plays a key role in reducing the fork’s weight, as well as improving the fork’s performance, especially for riders at either end of the rider weight spectrum.

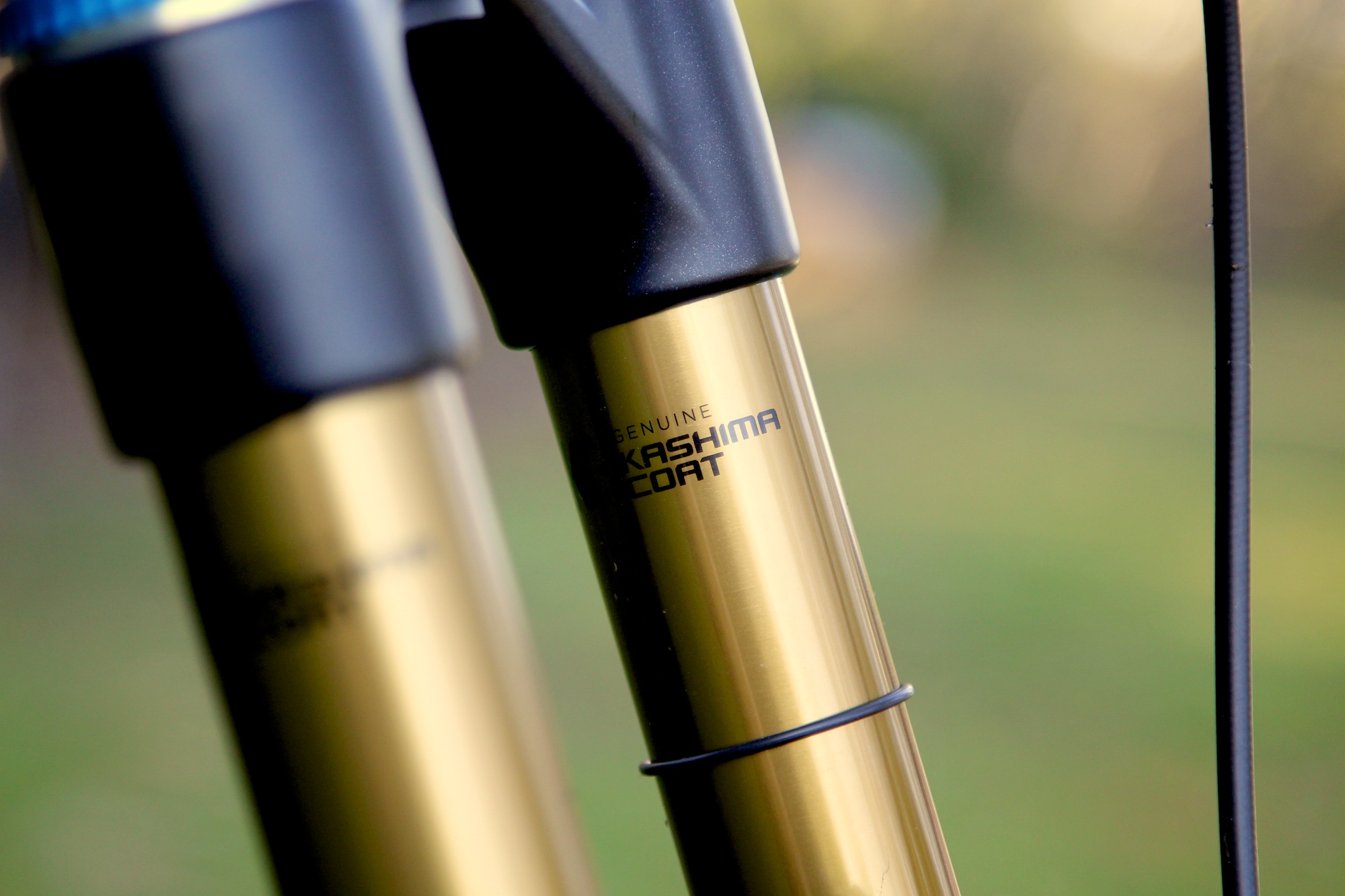

Reducing friction was seen as a key battleground, and FOX have gone all-out to make the 36 as slippery as possible. Externally, the Kashima coated legs are now polished using a different process that apparently traps more oil particles in microscopic pores in the aluminium. Internally, two completely different styles of oil are now used for lubrication and damping purposes; the new Gold Oil fluid used for lubricating the lower legs/sliders is claimed to be more slippery than a jail house soap bar. A new seal head on the damper cartridge with reduced friction completes the package.

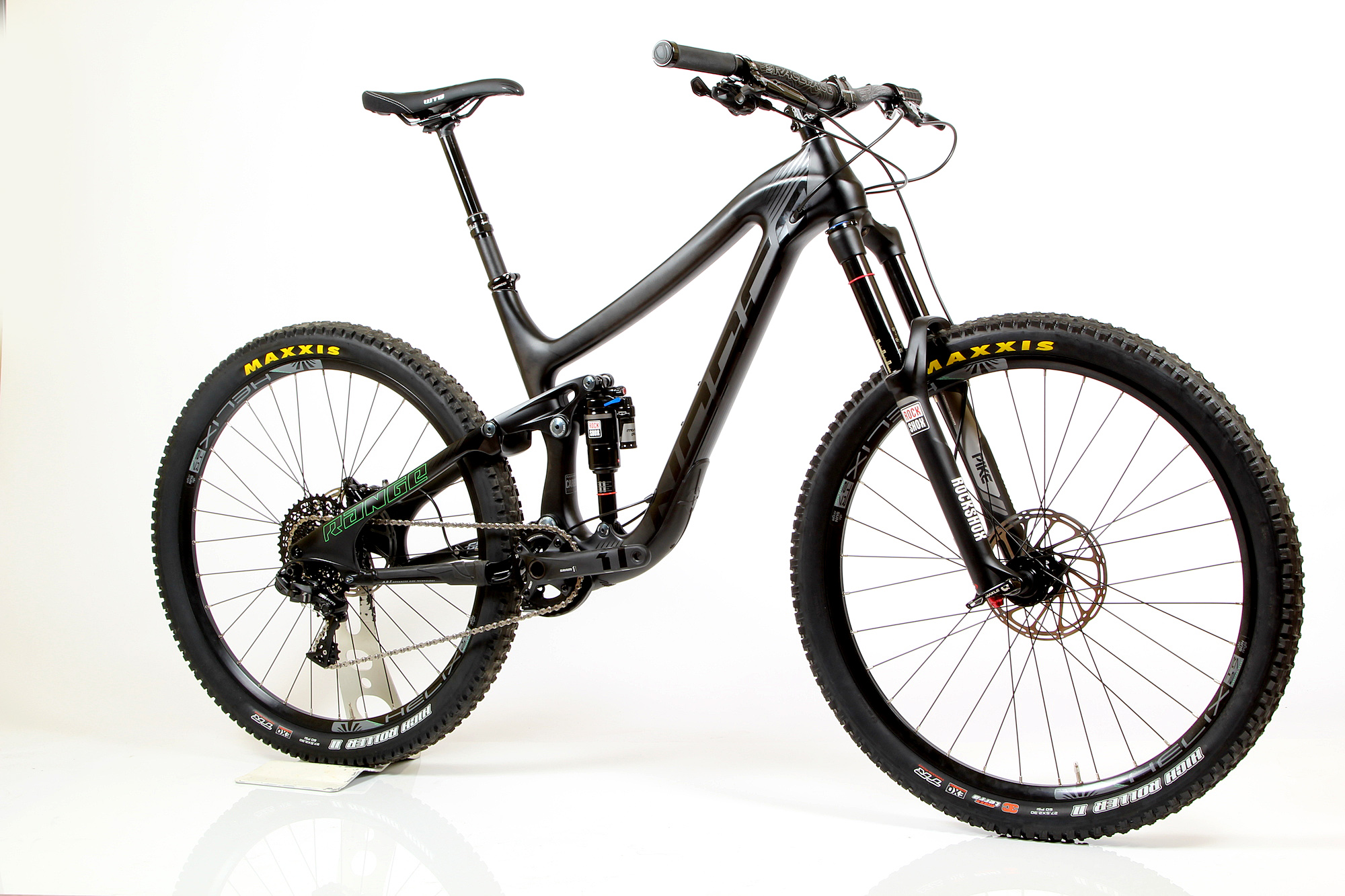

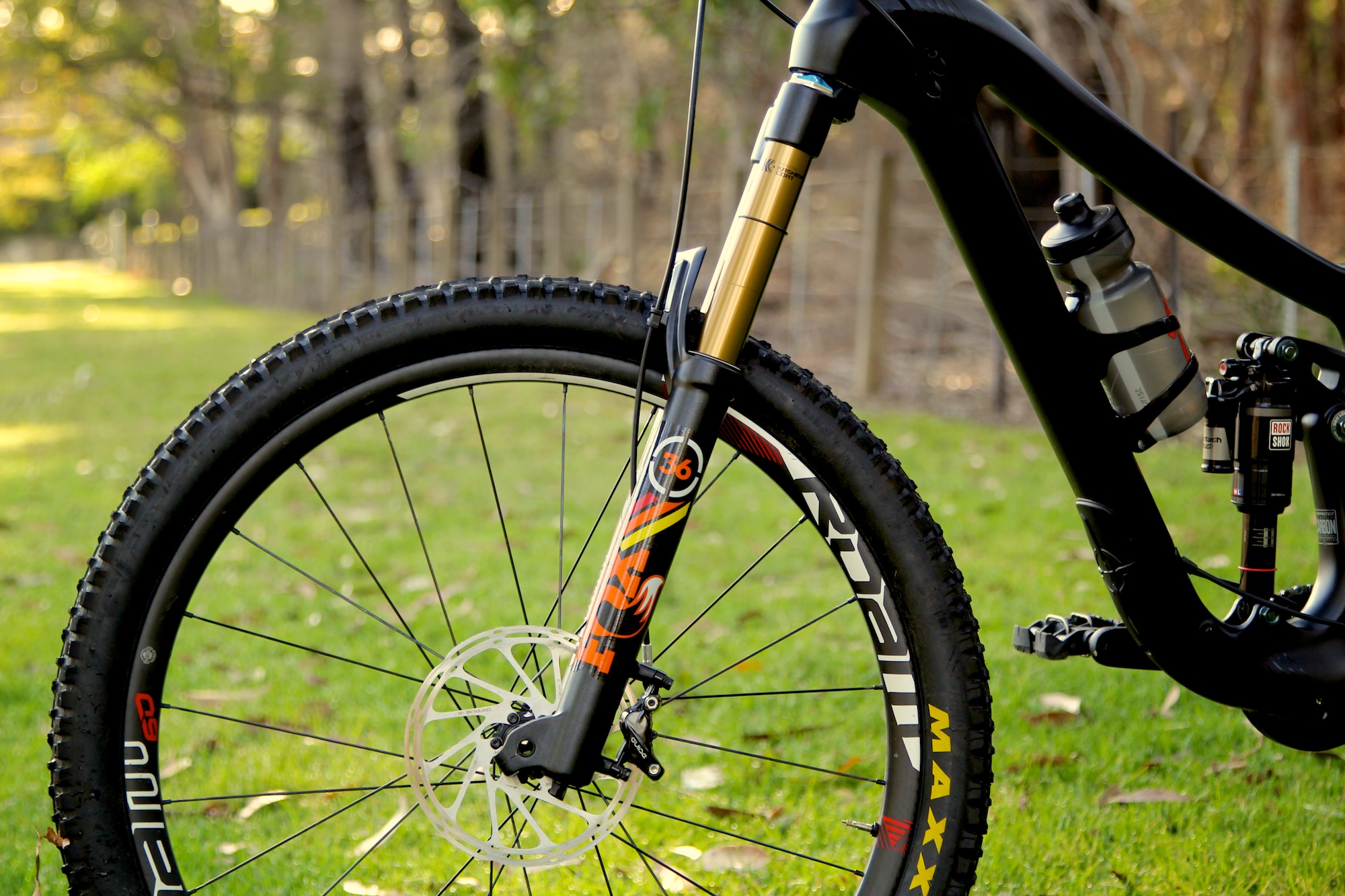

But how does it bloody well ride? We fitted our 36 Float to our Norco Range C7.2 long-term test bike, where it replaced a Pike RC. We were tempted to run the FOX at 170mm, but for the sake of a direct comparison with the Pike, we went for 160mm instead.
Getting the fork setup for our weight was aided by FOX’s new recommended pressure guides, which are found on their website. You simply punch in the four digit code that’s marked on the fork, and the site will bring up the manuals, setup guide and such for your exact fork. For our 62kg test rider, the site recommended 58psi, and the sag and spring curve this pressure delivered felt 100% spot-on! If you did want to change the fork’s feel, FOX now gives you the option of fitting air volume reducers (just like you can do with their rear shocks, a similar system to the RockShox Bottomless Tokens). We followed FOX’s recommended mid-range settings for the high/low-speed compression too, and got down to it.
The notion of a bed-in period seems to be non-existent with the new 36; the almost complete absence of friction that this fork exhibits from the very outset is just amazing. From the first 100 metres of our very first ride, you could have sworn this fork already had 10 hours of riding on it, so good is the small bump response. It’s so supple, the displaced air from a passing magpie could make it move. This fork is as close to frictionless as we’ve ever felt in a single-crown fork, and because the chassis is so stiff, there’s never any hint of binding or increased friction when you start asking the tough questions.
It didn’t take long to appreciate the benefits of a true low-speed compression damping system, rather than the CTD damper, either. Whereas the CTD system feels like a trade-off between bump response and support, a few clicks of low-speed compression made a huge difference, keeping the 36 supported under brakes, without losing any of its ridiculous bump response.
But it’s when things are really rough and rowdy that the 36 does its best work. Occasionally you ride a product that completely changes the way you see or ride a trail, and the 36 is one such product. It gave us a feeling that we’d normally only associate with a very well setup downhill bike; a sensation of having more time to react, as if the trail was coming at you 20% slower, when you’re actually riding faster than ever before. The feeling was that our front tyre was glued to the ground, affording us more braking traction and cornering bite, and the roughness of the terrain just did not translate to the bars, leaving us more relaxed and feeling more fluid on the bike.
On our Norco, already a super stiff bike, the addition of the 36 just took it to the next level. Line choice became as irrelevant as an election promise. This fork simply does not flinch! That feeling of spiking, or twanging or imprecision… all gone. Basically, if you have the guts and the strength (or the cleat tension) to just run into something, the 36 will encourage you to do it. It’s like there’s a group of teenagers sitting by the side of the trail, heckling you until you try something really stupid.
So, is the 36 a better fork than the Pike? For general trail riding, the Pike has the edge with both weight and it’s more user-friendly in terms of damping controls, plus it has the Maxle quick-release system. But if the focus is on the descents, then we’d have to say that we’re in awe of the FOX 36, and we think it’s the new leader in this arena. The stiffness, the completely amazing smoothness, the way it gobbles up hits from the smallest pebble to the nastiest ledge drop – all these things and more make us very fond of the new 36. Welcome back, FOX.
