Mondraker’s Forward Geometry arguably kicked off the current trend of ever-longer frames. As far back as 2013, the Spanish outfit was making everything from XC bikes to DH sleds with roomy front ends and stumpy short stems. It seems they may have been onto something all those years ago.
The bikes aren’t as long as some of the super boutique brands like Pole or GeoMetron, but Mondraker has always been on the front foot of the front centre length. With the launch of an updated Foxy enduro bike and the all-new Raze trail bike, the Spanish outfit is still hacia adelante (translation: moving forward).

Related:
- On Test | The 2022 Norco Range is an enduro beast with High Virtual Pivot suspension
- Flow’s Fresh Produce | Helmets from Specialized and TLD, a cassette tool from PRO, and Bontrager rubber
- On Test | The 2022 Scott Spark adds integration, travel, and weight
2022 Mondraker Foxy overview
Mondraker first released the Foxy in 2004, and adopted its current silhouette around 2015. At first glance, the new Foxy may not look all that different to its predecessor, but the Spanish outfit has been working hard on small refinements that ultimately make this bike a whole new animal.
The new Foxy is made from the brand’s Stealth Air Carbon from tip to tail. Yep, that means the rocker link and the rear triangle, in addition to the front end. This full-carbon fit-out means the Foxy is pretty darn light, with the Carbon XR build claimed to weigh 12.9kg. For perspective, this puts the Foxy in the same weight category as the new Trek Top Fuel (12.88kg), which doesn’t have a piggyback shock, a fork with 36mm stanchions, big rotors or burly tyres — you get the idea.
Mondraker does offer the Foxy with an alloy frame, but at the time of writing, it does not appear these will be getting a revamp.
Rolling on 29in wheels, the frame itself is based around 150mm of rear travel and is paired with a 160mm or 170mm fork.

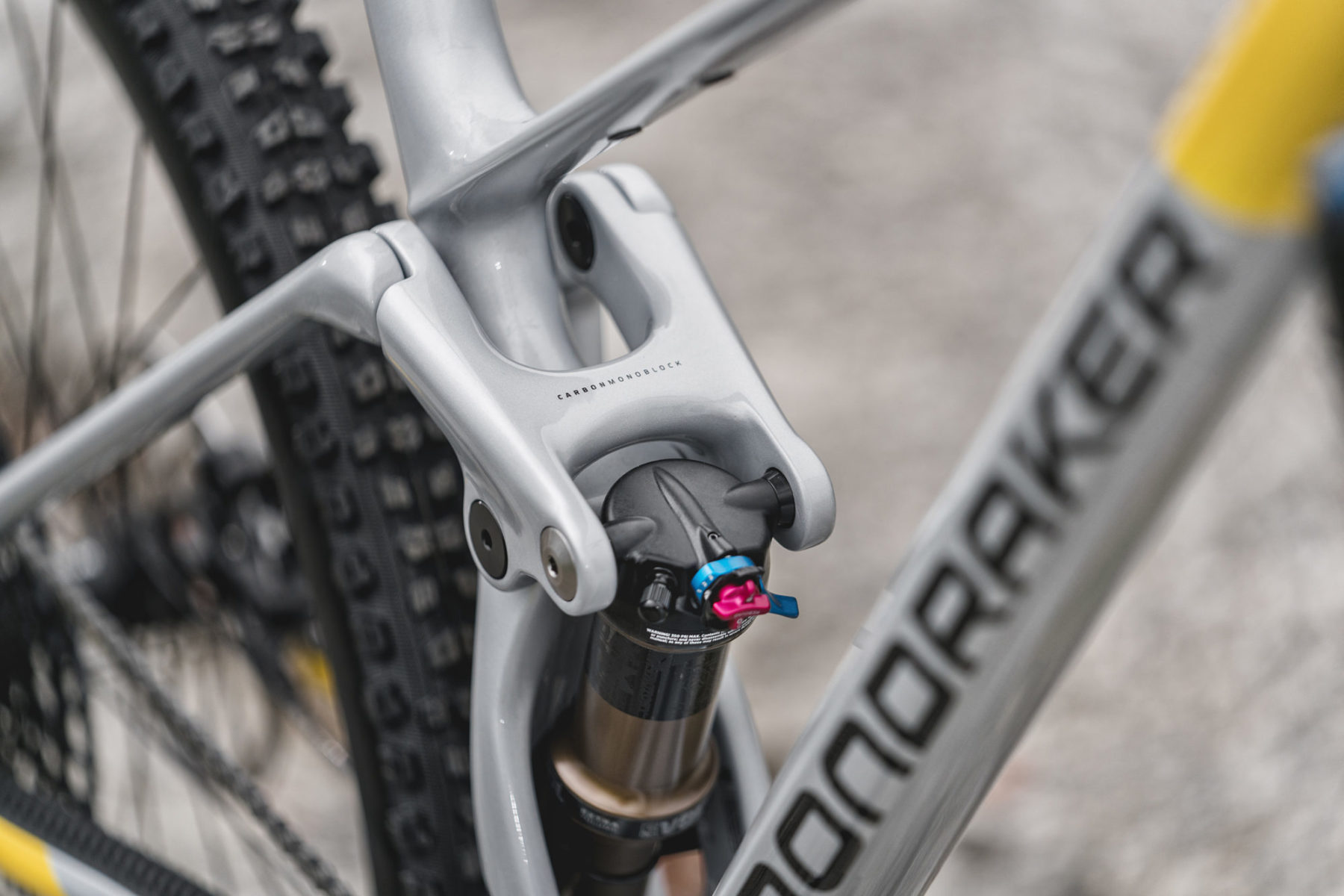

Zero Suspension System and Mind Telemetry
Zero is Mondraker’s virtual pivot suspension layout, which utilises two links that control and compress the shock from both ends — think Santa Cruz VPP, but slightly different.
This suspension layout creates a ‘floating’ shock which the brand says creates oodles of pedalling efficiency and small bump sensitivity, without pedal kickback or brake jack. Unfortunately, Mondraker did not mention any numbers relating to the kinematics, so we’ll have to take their word for it until we can get one. The brand did confirm, however, that the new Foxy is coil compatible.
The new Foxy features Mondraker’s Mind telemetry system. The fork and shock are fitted with sensors that monitor your suspension, and recommend settings to help you extract maximum performance. The fender-looking doohickey sitting behind the fork crown is actually a sensor which tracks how the lowers move up the stanchions as you ride, and its distance from a magnet attached to the main pivot.

Using data collected every millisecond, this information is packaged and presented in the MyMondraker App, which gives you recommendations on air pressure, and ideal compression and rebound settings. The system also keeps track of jumps and bottom outs.
The Mind system also has a built-in GPS chip, and Mondraker bikes can record your ride without the need for a head unit or a connection to your phone. When you finish, the file can be synced with the companion app, which can then push the file to the third-party app of your choice, like Strava. There is also a built-in antitheft system that will send a push notification to your phone if your bike is moved, and the app can help you track the location if it’s stolen.
All of this runs an integrated rechargeable battery, and Mondraker says a full charge should last 20-hours of ride time and over 15-days in standby mode.
Foxy Geometry
The Foxy Carbon is a long bike, but only in the front. The size medium frame sees a 470mm reach, a 623mm stack, 435mm chainstays and a wheelbase of 1227mm. Compared to a bike in the same category, like a Yeti SB 150, a medium frame has a 460mm reach, 614mm stack, 433mm chainstay and a 1223mm wheelbase. The Foxy’s head angle is half a degree steeper than the SB150, while the seat angle is one-degree slacker.
The idea behind this long front centre is to move the rider’s weight further behind the front axle for added confidence in steeper terrain. The trade-off is that you need to descend in a more aggressive position to get the front tyre to bite.

Compared to the previous Foxy, the updated version is one-degree slacker at the front, and has the same seat tube angle and chainstay length. Interestingly, the reach is 5mm shorter (size M), and the frame has 4mm more BB drop.
Hidden on the lower shock link is a flip-chip that drops the bottom bracket by 5mm, slackening the head angle by half a degree, the seat angle by .3-degrees and shortening the reach by 5mm. Swapping this flip-chip also lengthens the chainstays by 10mm.
If that doesn’t quench your thirst for adjustable geometry, Mondraker also includes offset headset cups which tweak the head angle by +/- 1-degree without affecting anything else.

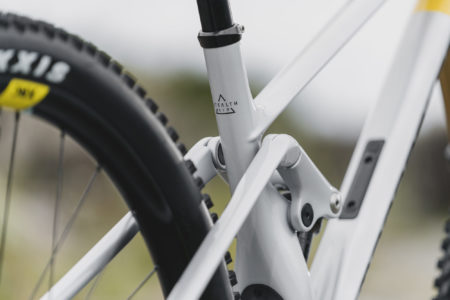

Foxy Carbon Frame features
With the rear shock running through the middle of the seat tube, Mondraker has spec’d a custom fender to block what would otherwise be a constant spray of trail debris, aimed squarely at the last place you want it. At the bottom bracket there is a bit of protection to fend off rocks kicked up by your front tyre, and the right-hand chainstay has a ribbed, high-density rubber guard to keep the chain quiet.
The Foxy is the latest bike to run the cables and brake hose through the top headset bearing into the frame. We’ll concede it’s a clean look, but buckle up when that bearing gives up, because you’re in for a big job. At least Mondraker has made the process a little easier with its ‘Hidden Housing Guide’ system, which sees internal cable stops to prevent rattling.
We’re also happy to report that Mondraker is doing its part to banish creaks and difficult to find parts by using a threaded bottom bracket and SRAM’s Universal Derailleur Hanger. You’ll also find ISCG05 mounts and what Mondraker calls the ‘Fidlock integration pocket,’ which allows for a standard bottle cage or a purpose-built low profile receiver for the magnetic bottles — similar to what YT uses.

2022 Mondraker Raze
For a long time, the Factor served as Mondraker’s trail platform but it disappeared from the brand’s catalogue in 2019. This meant the Spanish outfit’s naturally aspirated bikes jumped straight from the XCO ready F-Podium to the Foxy. The new Raze fills this gap.
With 130mm of rear travel and a 150mm fork, like the Foxy, the Raze is made entirely of Mondraker’s Stealth Air Carbon — rear triangle, rocker and all. Claimed frame weight, sans rear shock, is less than 2kg, but Mondraker doesn’t specify how far under two chickens the scale reads. Complete bikes are claimed to weigh 12.5kg for the Raze RR build and 13.2kg for the Raze R.

Raze Suspension
The Raze sees Mondraker’s dual-link, Zero suspension system and features an all-new lower link, said to improve stiffness.
Looking after the rear squish is a custom-tuned Fox DPS shock, with light compression, extra light rebound and a 0.6 volume spacer installed. At launch, the brand hasn’t provided any anti-squat/anti-rise or leverage curve figures, but does tell us it aims to combine the F-Podium and Foxy’s best characteristics.
The Spanish outfit has also trickled its MIND telemetry system into the Raze, to help riders get the most out of their suspension.
Raze geometry
The Raze, too, receives Mondraker’s Forward Geometry treatment, and it is equally as radical as the longer travel Foxy. A size medium frame has a 475mm reach, 617mm stack, 65.5-degree head angle, 76.5-degree seat angle, 435mmm chainstays and a 1217mm wheelbase in a size medium frame.
Compared to something like the Norco Optic, which is one of the more progressive trail bikes on the market, a medium Raze measures closer to the size large frame than a medium.
Of course, we should note the small, medium, and large labels a bike manufacturer slaps on its frames are all relative, which is why some brands like Specialized are moving away from these labels, and encouraging folks to choose bikes based on reach.

Raze Frame Features
Similar to the Foxy, the Raze gets an integrated rear shock guard, and frame protection. The cables are wrangled by Mondraker’s Internal Hidden Housing guide system, running through the top headset bearing, all the way to their destination at the rear of the bike, without exiting at the BB.
The Raze also gets the Fidlock integration pocket, SRAM’s Universal derailleur hanger, a threaded BB (yeew!) and ISCG05 mounts.
2022 Mondraker Foxy & Raze spec and pricing
Mondraker’s Australian distributor Advanced Traders is bringing two models of the Raze and three Foxys down under.
Each Raze features Fox suspension with a 36 fork, a Float DPS at the back, and SRAM drivetrains.
The Foxy will come in one build with Fox suspension, while the other two bounce on Öhlins shocks, with the range topping XR model upping the fork travel by 10mm to 170mm.
Advanced Traders have told Flow we can expect the new Foxy to arrive in March next year, with the Raze expected a month later. Read on for the full spec and pricing.

2022 Mondraker Foxy Carbon XR
- Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle
- Fork | Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm
- Shock | Öhlins TTX Air 205x65mm.
- Wheels | DT Swiss EXC1501 Carbon Spline 29, 30mm internal, DT 240, Boost 36T Ratchet EXP system,
- Tyres | F:Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, R:Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
- Drivetrain | Sram X01 Eagle
- Brakes | Sram G2 RSC w/ 200m/180mm rotors
- Bar | Onoff Kripton Carbon 1.0, rise: 25mm, width: 800mm, 9-degree backsweep, 5-degree upsweep, 31.8mm barbore
- Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore
- Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/ XL size: 465x170mm
- Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails
- Claimed weight | 12.9 kg
- RRP | $11,999

2022 Mondraker Foxy Carbon RR
- Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle
- Fork | Öhlins RXF 36 M.2 29, 160m, 170mm, TTX18 Twin Tube cartridge, Boost 15x110mm axle, offset 44mm
- Shock | Öhlins TTX Air 205x65mm.
- Wheels | DT Swiss EX1700 Spline 29, 30mm internal, DT 350, Boost, 36T SL Ratchet system
- Tyres | F:Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, R:Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
- Drivetrain | Sram GX Eagle
- Brakes | Sram G2 RS w/ 200m/180mm rotors
- Bar | Onoff Sulfur Carbon 1.0, rise: 25mm, width: 780mm, 9-degree backsweep, 5-degree upsweep, 31.8mm barbore
- Stem | Onoff Sulfur FG 30mm, 6061 forged alloy, 31.8mm barbore
- Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/ XL size: 465x170mm
- Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails
- Claimed weight | 13.4 kg
- RRP | $9,999

2022 Mondraker Foxy Caron R
- Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle
- Fork | Fox 36 29 Float GRIP2 Factory Kashima, 150mm, offset 44mm
- Shock | Fox Float-X LV Performance 205x65mm.
- Wheels | DT Swiss E1900 Spline 29, 30mm internal, DT 370, Boost, 18T Ratched LN system
- Tyres | F:Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, R:Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
- Drivetrain | Sram NX Eagle
- Brakes | Sram G2 R w/ 200m/180mm rotors
- Bar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9-degree backsweep, 5-degree upsweep, 31.8mm barbore
- Stem | Onoff Sulfur FG 30mm 0-degree, 6061 forged alloy, 31.8mm barbore
- Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/ XL size: 465x170mm
- Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails
- Claimed weight | 14.1 kg
- RRP | $8,499

2022 Mondraker Raze Carbon RR
- Frame | Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Carbon Monoblock upper link, Boost 12x148mm rear axle
- Fork | Fox 36 29 Float GRIP2 Factory Kashima, 150mm, offset 44mm
- Shock | Fox Float DPS Factory Kashima evol LV, 205×57.5mm
- Wheels | DT Swiss XM1700 Spline 29, 30mm internal, T 350, Boost, 36T SL Ratchet system,
- Tyres | F:Maxxis Dissector 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, R:Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
- Drivetrain | Sram X01/GX Eagle
- Brakes | Sram G2 RS w/ 200m/180mm rotors
- Bar | Onoff Kripton Carbon 1.0, rise: 25mm, width: 800mm, 9-degree backsweep, 5-degree upsweep, 31.8mm barbore
- Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore
- Seatpost | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm
- Saddle | Fizik Antares R7
- Claimed weight | 12.5 kg
- RRP | $10,499

2022 Mondraker Raze Carbon R
- Frame | Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Carbon Monoblock upper link, Boost 12x148mm rear axle
- Fork | Fox 36 29 Float GRIP Performance, 150mm, 44mm offset
- Shock | Fox Float DPS LV EVOL Performance, 205×57.5mm
- Wheels | DT Swiss XM1700 Spline 29, 30mm internal width DT 350, Boost, 36T SL Ratchet system
- Tyres | F:Maxxis Dissector 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, R:Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
- Drivetrain | Sram GX/NX Eagle
- Brakes | Sram G2 w/ 200m/180mm rotors
- Bar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9-degree backsweep, 5-degree upsweep, 31.8mm barbore
- Stem | Onoff Sulfur FG 30mm 0-degree, 6061 forged alloy, 31.8mm barbore
- Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/ XL size: 465x170mm
- Saddle | Fizik Antares R7
- Claimed weight | 13.2 kg
- RRP | $8,499
